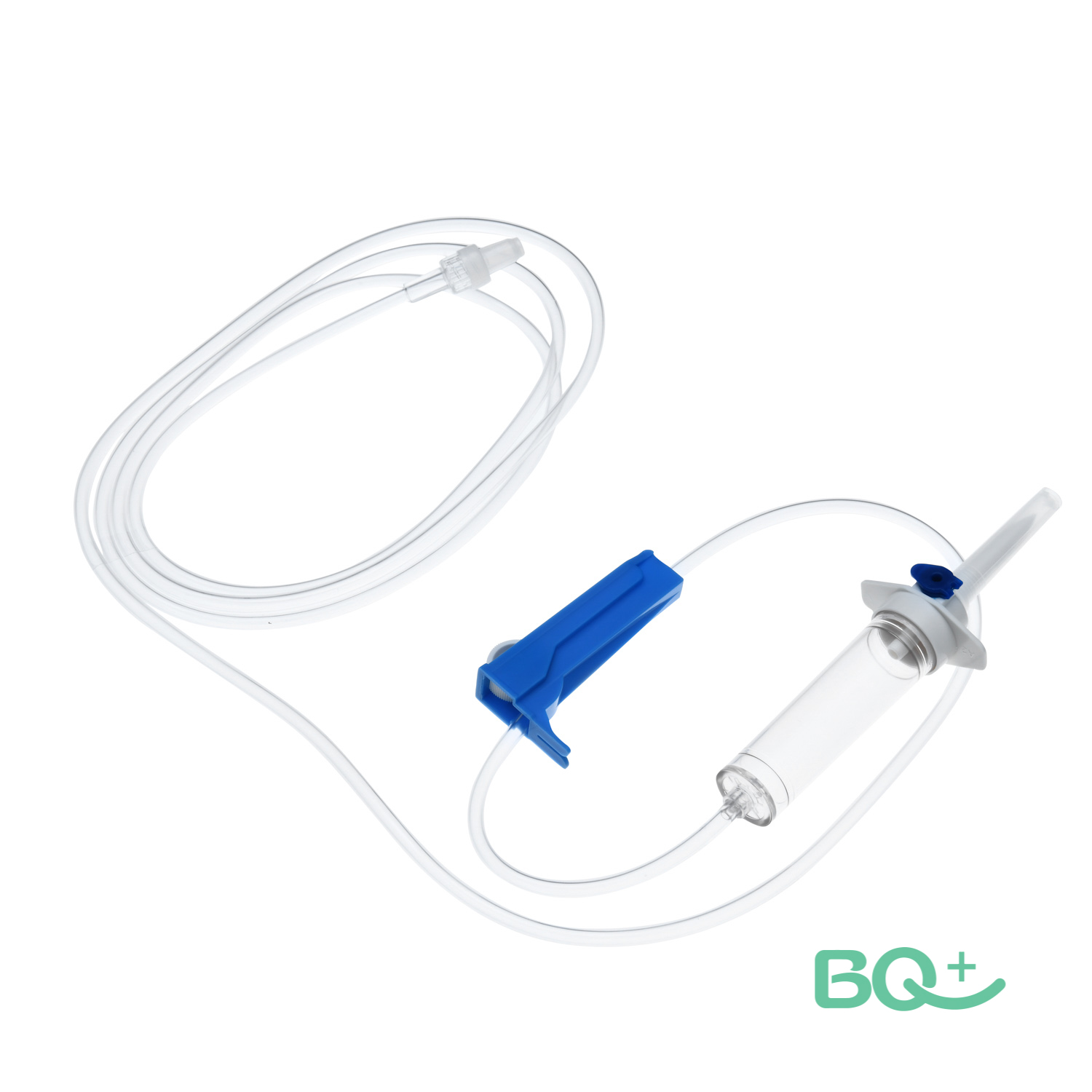

01 Standard I.V. Administration Sets
Established gravity-set configurations for common container, chamber, tubing, flow-control and patient-end requirements.
Gravity infusion sets
One gravity platform. Multiple product families.
Choose an established BQ+ gravity infusion-set family first. Then compare configurations, select controlled options or start a customer-specific development when the requirement falls outside an existing product.
Representative gravity set with flow regulator and Y-site
Browse by product family Reach the closest existing route first
Compare configurations See how products differ before customising
Send a reference A sample or catalog number can start
Confirm by BQ+ REF Status and values remain product-specific
Explore the gravity infusion portfolio
Find the closest product family first.
Start from an established BQ+ family, compare available configurations, and then confirm options and public claims against the selected product reference.
01

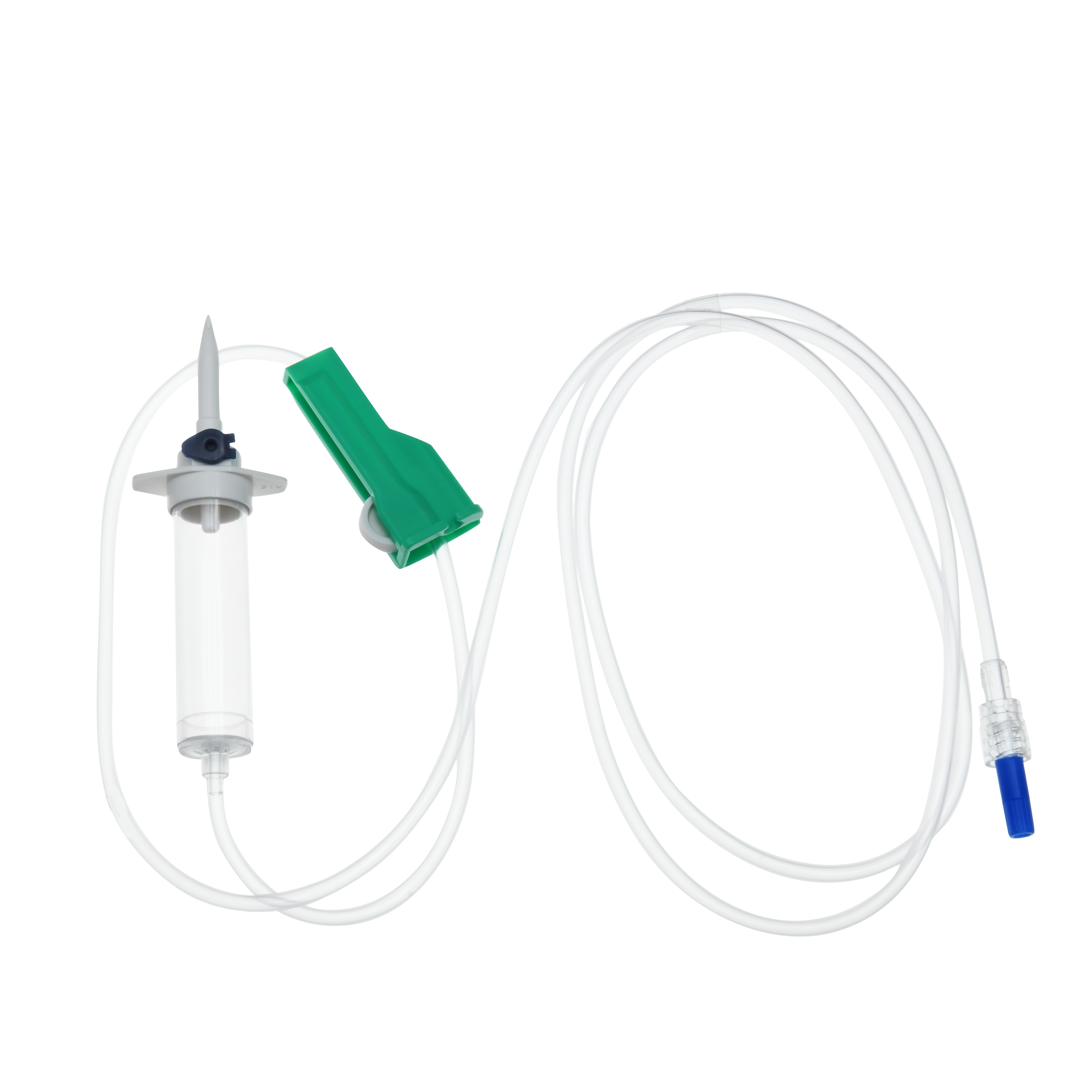

02 Air-stop Infusion Sets
Configurations using a defined chamber or fluid-stop concept, subject to product-specific functional verification.

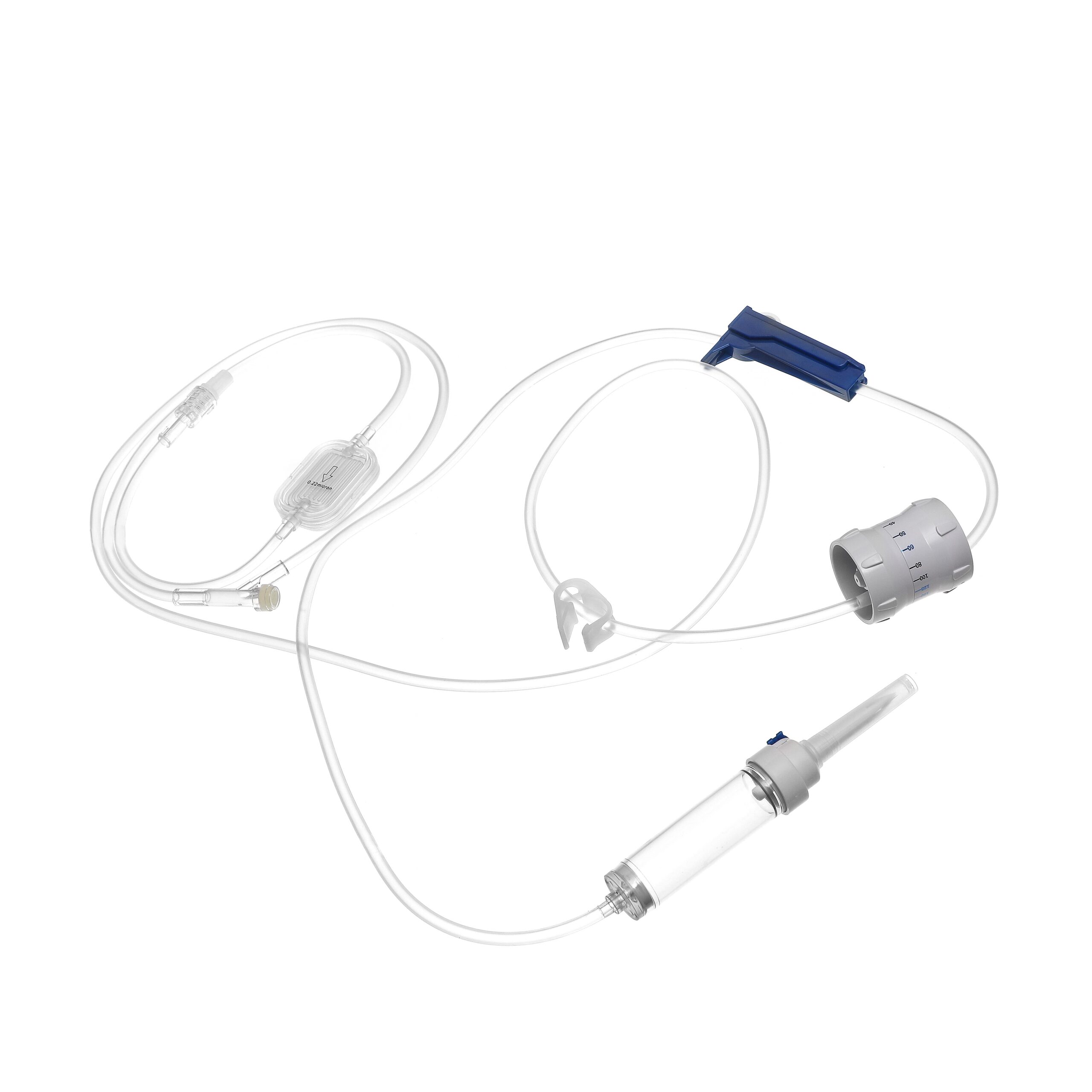

03 Flow-regulator Infusion Sets
Gravity sets incorporating a selected flow-regulating component for defined operating conditions.

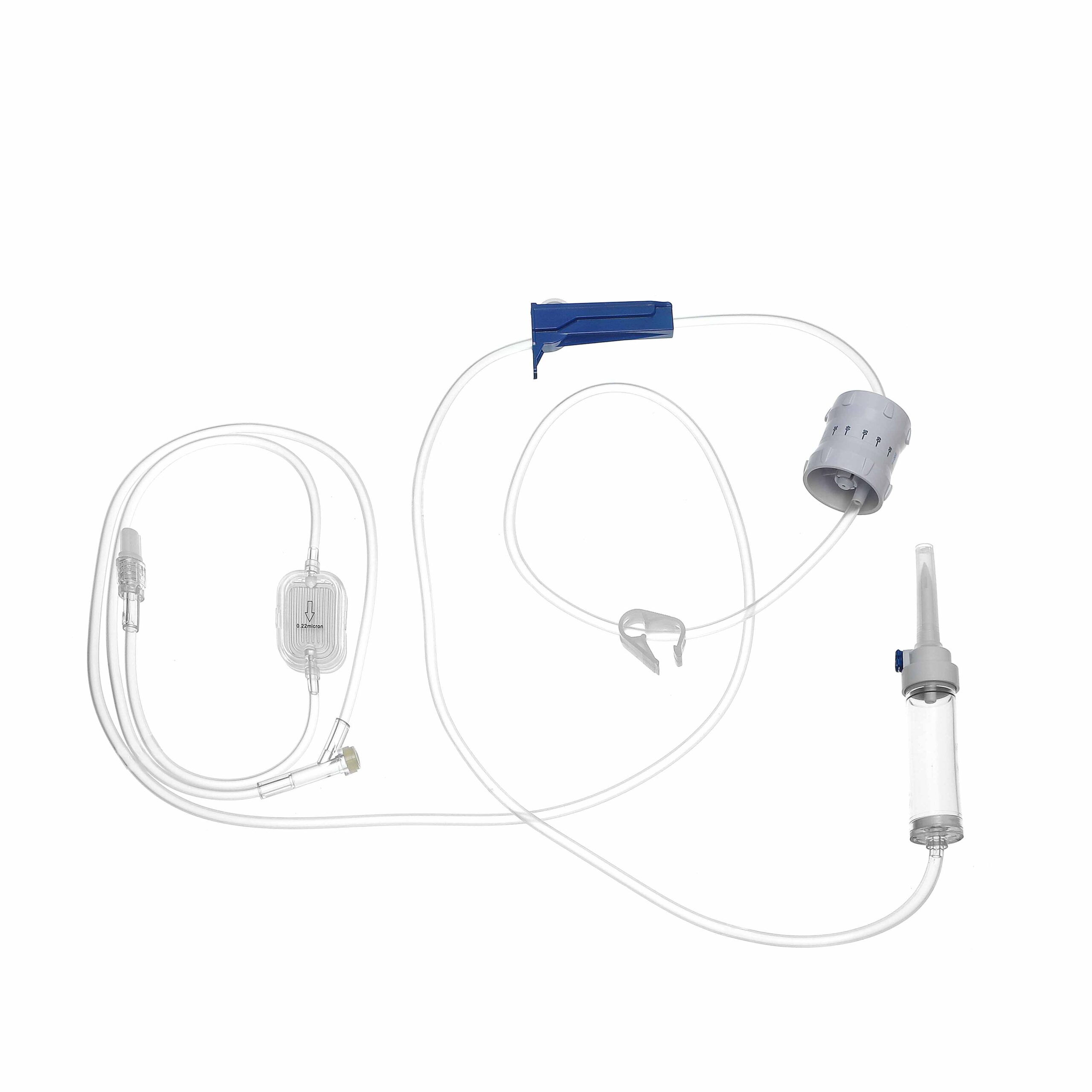

04 Filtered Infusion Sets
Finished sets configured with a selected in-line filter and a product-specific evidence route.

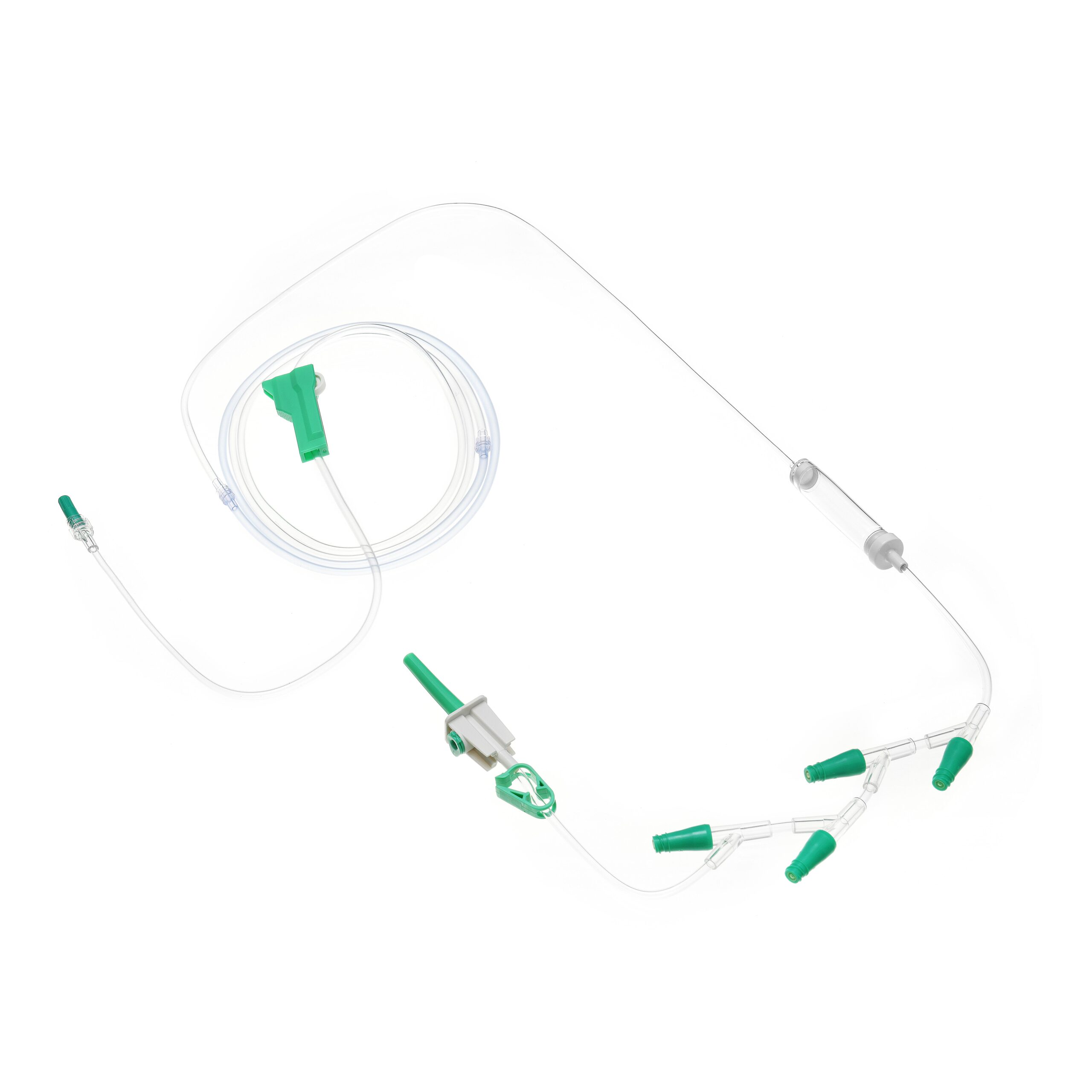

05 Needle-free Valve Infusion Sets
Single- or multi-access configurations arranged around the intended connection and administration workflow.

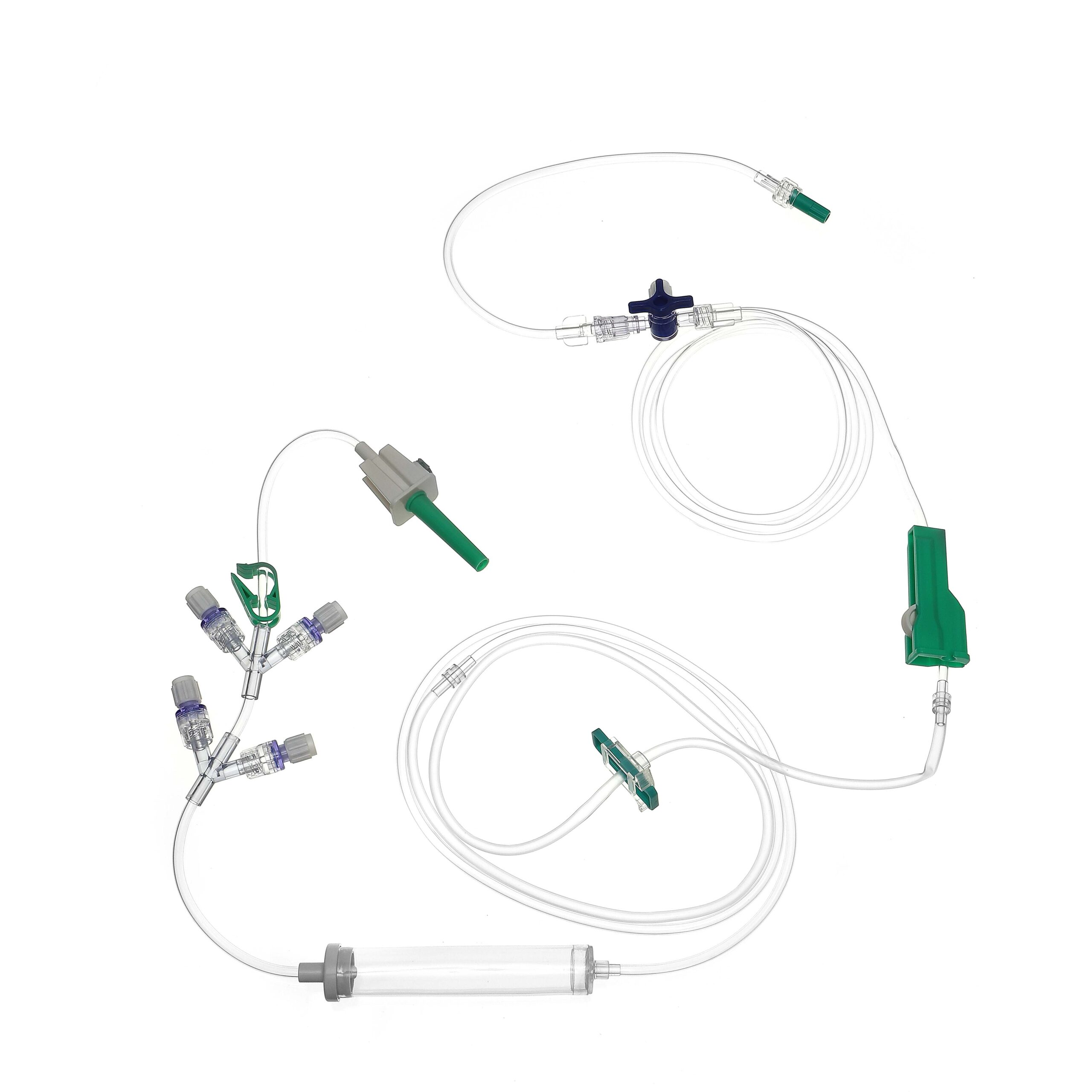

06 Stopcock & Multi-access Sets
Gravity configurations with stopcocks, branches, check valves or multiple access points in a defined sequence.

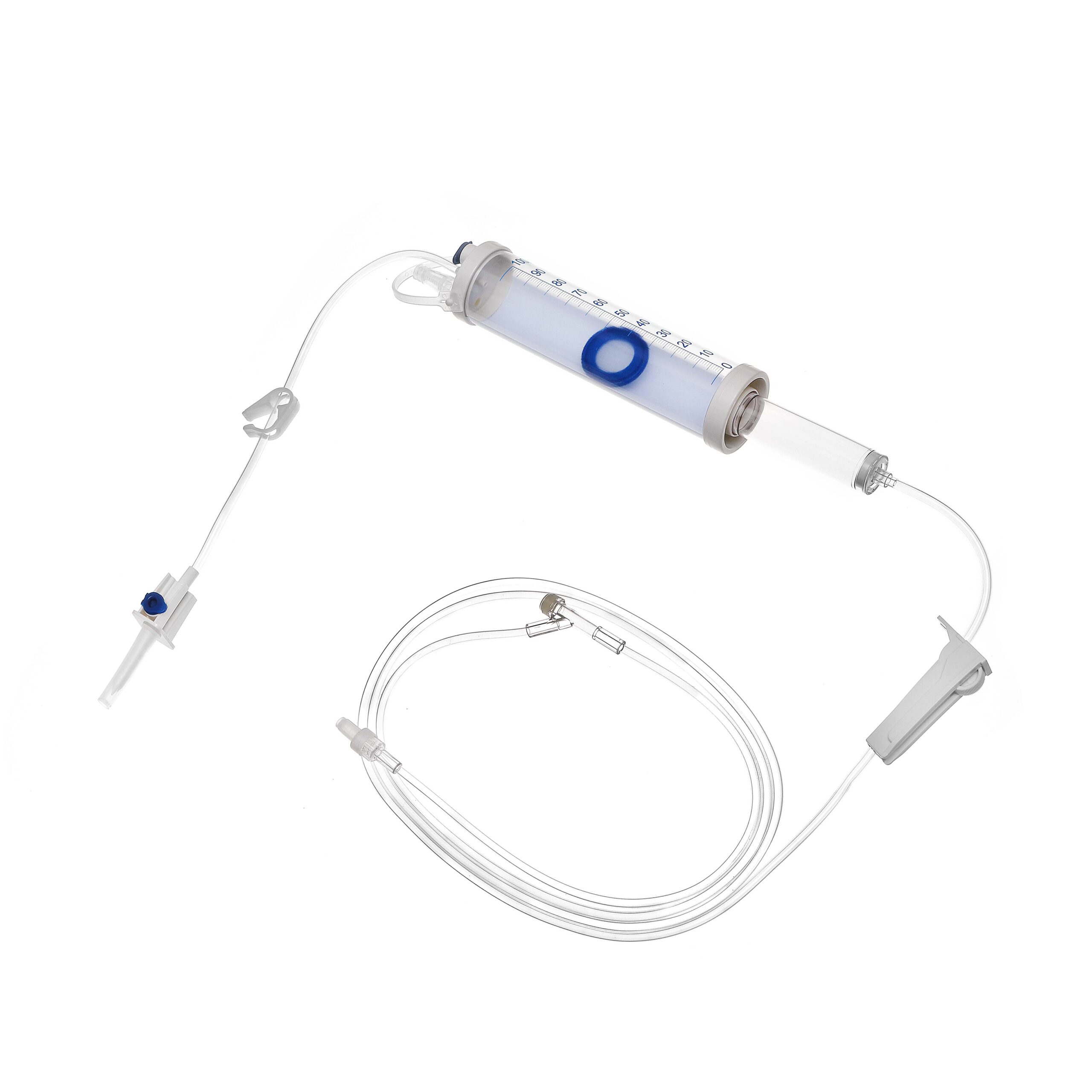

07 Burette Administration Sets
A separately controlled gravity family with its own chamber, volume-control, connection and market requirements.

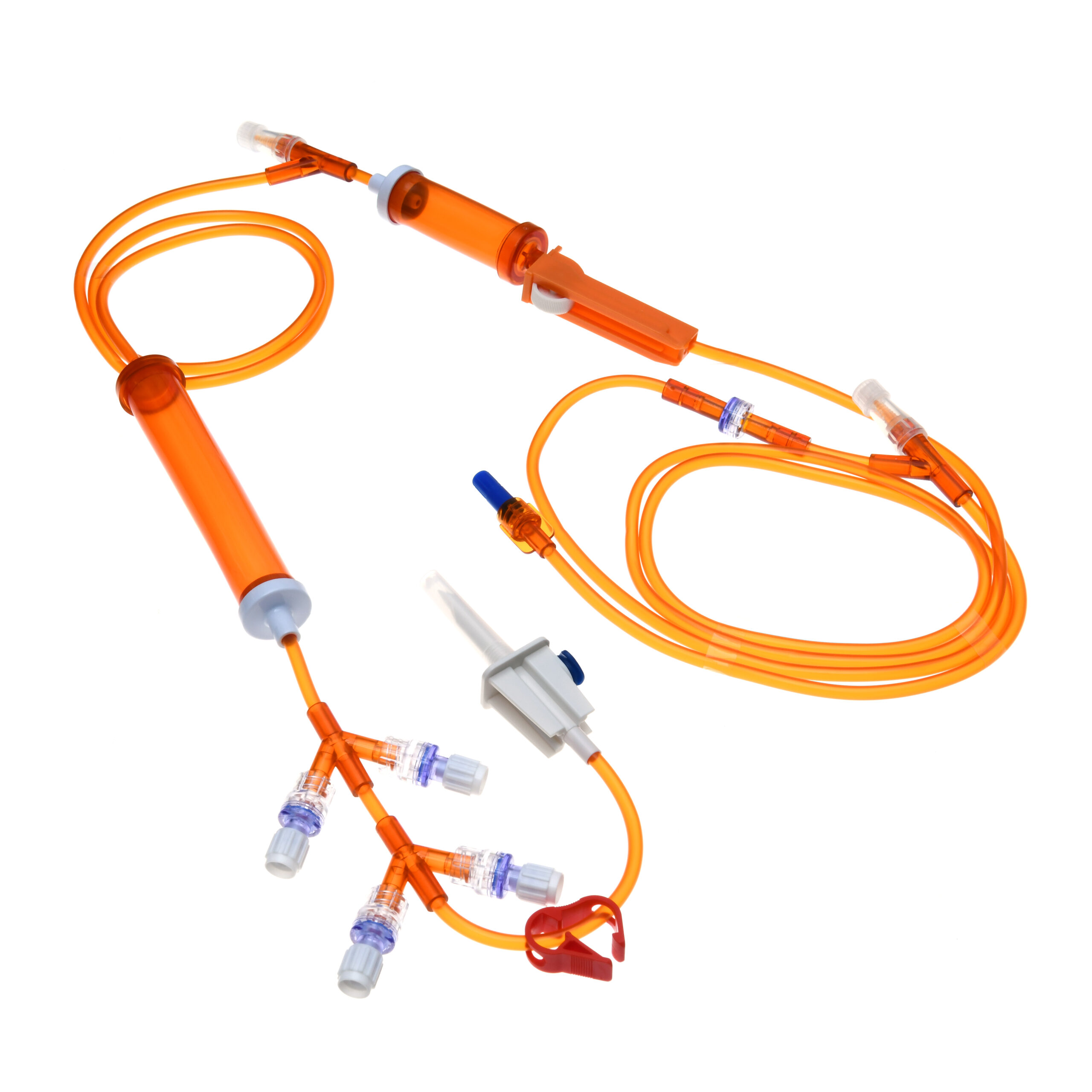

08 Light-protected Infusion Sets
Selected tubing and fluid-path elements for defined light-protection requirements; released claims remain REF-specific.
Representative product options
Compare the main differences at a glance.
Each group shows a practical selection rather than every catalog variation. Open a catalog link only when you need the broader range; exact product matching and availability are confirmed after you send the complete requirement.
Infusion chambers
34 catalog models
A1F 72 mm · vented · with filter · 20 drops/ml
A2F 72 mm · vented · with filter · 60 drops/ml
A3F 62 mm · vented · with filter · 20 drops/ml
A4F 62 mm · vented · with filter · 60 drops/ml
+ 30 more choices Catalog pp.31-39 →
Robert & slide clamps
6 catalog models
Robert clamp · white Representative Robert clamp
Robert clamp · purple Representative Robert clamp
C03 slide clamp Representative slide clamp
C01 slide clamp Representative slide clamp
+ 2 more choices Catalog p.40 →
Roller clamps
4 catalog models
RC101-B 56 mm precision V
RC102-B 55 mm precision V
RC103 45 mm precision V
RC108 Air-stop set route
All catalog choices shown Catalog p.44 →
Y injection sites
9 catalog models
ST103-Y Latex-free · easy handle
ST103-OR Light-resistant route
ST104-Y Compact easy-handle route
ST110-IR Latex-free Y-site route
+ 5 more choices Catalog p.43 →
Needle-free injection sites
8 catalog models
NFV-S16 Neutral-pressure · straight
NFV-L16 Neutral-pressure · female-luer route
NFV-S17 Negative-pressure · straight
NFV-Y17 Negative-pressure · Y-site for 4.0 mm OD tubing
NFV-T17 Negative-pressure · T-site route
+ 3 more choices Catalog pp.17 & 19 →
Spikes
5 catalog models
ST02 Spike for 4.1 mm OD tubing
ST18 Vented spike · 4.0 mm OD tubing
VST01 Vented spike route
+ 2 more choices Catalog p.41 →
Back check valves
4 catalog models
BCV06 Female–male ends
BCV08 Male–tube ends
BCV10 Female–tube ends
BCV12 Tube–tube ends
All catalog choices shown Catalog p.41 →
3-way stopcocks
3 catalog models
SK46 3-way stopcock design
SK47 In-line stopcock for tubing
SK50 Rotating-luer design
All catalog choices shown Catalog p.15 →
IV filters
6 catalog models
BTT-0.2-T 0.2 μm · round housing · tube route
AFRM-1.2-HT 1.2 μm · adult precision-filter housing
ATT-5-HT 5 μm · compact filter housing
+ 3 more choices Catalog p.23 →
Flow regulators
2 catalog models
FR-9 Single scale · 20–250 mL/h
FR-14 Double scale · 20–250 mL/h
All catalog choices shown Catalog p.21 →
Burette upper covers
2 catalog models
Standard upper cover Representative single upper cover
Needle-free upper cover Upper cover with needle-free access
All catalog choices shown Catalog p.26 →
Burette chambers
4 catalog models
100 mL chamber Transparent chamber route
150 mL chamber Transparent chamber route
+ 2 more choices Catalog p.26 →
Female luer locks
5 catalog models
FLL01 Rotating female luer lock
TC01 Female luer lock
FLL02 Female luer lock
FLL05 Female luer lock for tubing
+ 1 more choice Catalog p.45 →
Male luer locks
16 catalog models
MLL02 Male luer lock with flashback route
MLL03 Male luer lock
MLL04 Male luer lock for extension
MLL31 Undetachable spin luer lock
+ 12 more choices Catalog pp.45-46 →
HT-series caps
6 catalog models
HT178 Prime Stop Cap
HT152 Stopcock cap
HT153 Cap with hole
HT107 Protective cap
+ 2 more choices Catalog p.46 →
Catalog range is a selection reference, not proof that every model is approved for every finished set or destination market.
Complete configuration examples
See the full arrangement and its main specification fields together.
Each example keeps the configuration drawing, component description, tubing size, material, length and case quantity in one readable card.

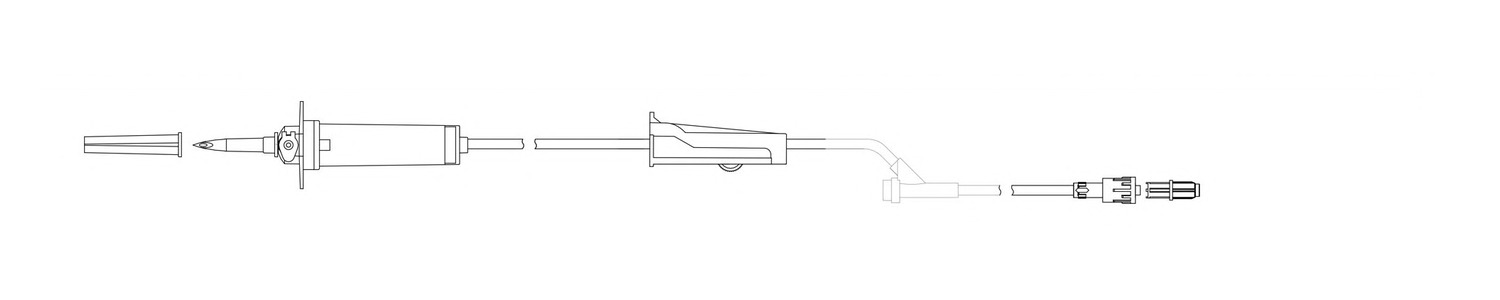

IV.GR.01
Standard gravity route
Vented chamber, roller clamp, injection access and luer end
Configuration: Vented drip chamber · 15 um chamber filter · Roller clamp · 1 injection site · Rotating male luer lock with cap
Tubing size (ID × OD) 2.9 x 4.05 +/- 0.07 mm
Tubing material DEHP-free PVC
Length 2400 mm
Unit / case 50

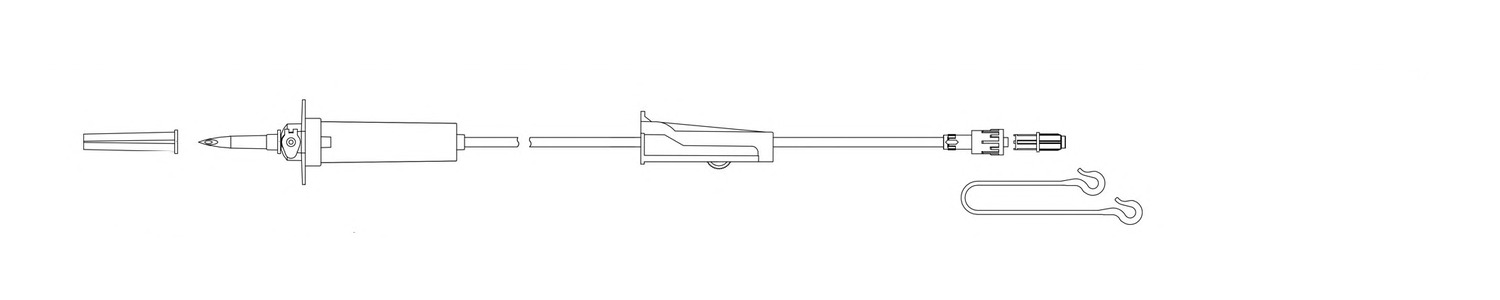

IV.GR.02
Streamlined standard route
Vented chamber, roller clamp and luer end
Configuration: Vented drip chamber · Roller clamp · Rotating male luer lock with cap
Tubing size (ID × OD) 2.9 x 4.05 +/- 0.07 mm
Tubing material DEHP-free PVC
Length 1200 mm
Unit / case 50

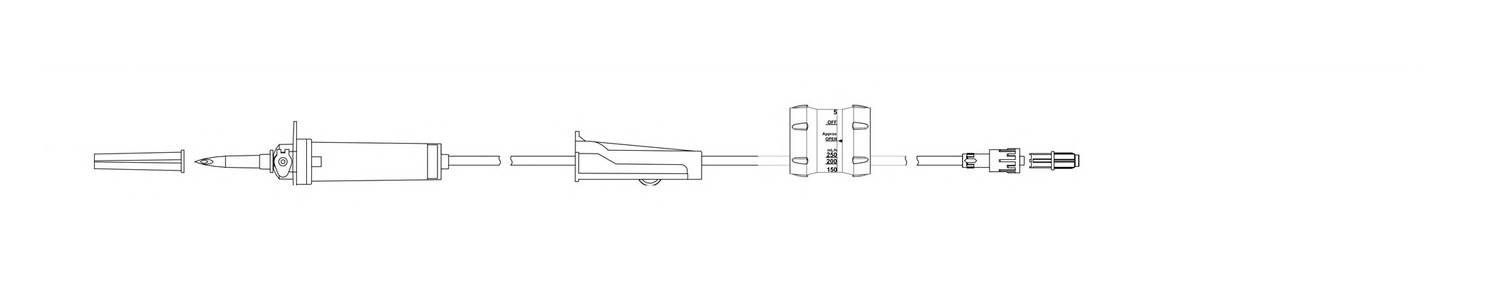

IV.GR.03
Flow-regulated route
Standard chamber with a flow-regulating component
Configuration: Vented drip chamber · 15 um chamber filter · Roller clamp · Flow-regulating component · Rotating male luer lock with cap
Tubing size (ID × OD) 2.9 x 4.05 +/- 0.07 mm
Tubing material DEHP-free PVC
Length 1600 mm
Unit / case 50

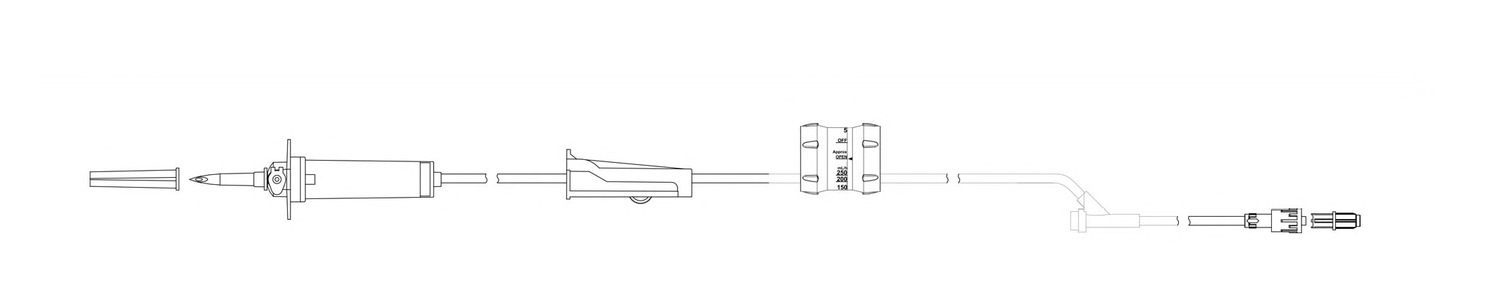

IV.GR.04
Flow-regulated access route
Flow-regulating component plus injection access
Configuration: Vented drip chamber · 15 um chamber filter · Roller clamp · Flow-regulating component · 1 injection site · Rotating male luer lock with cap
Tubing size (ID × OD) 2.9 x 4.05 +/- 0.07 mm
Tubing material DEHP-free PVC
Length 2300 mm
Unit / case 50

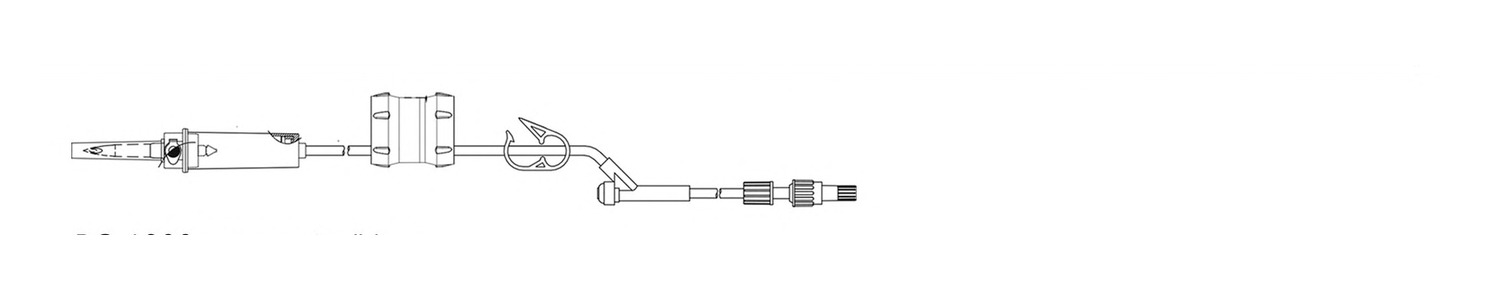

IV.GR.05
Microdrip flow-control route
Small chamber with flow-control and injection access
Configuration: Small vented drip chamber · 15 um chamber filter · Flow-regulating component · Robert clamp · 1 injection site · Rotating male luer lock with priming cap
Tubing size (ID × OD) 2.9 x 4.05 +/- 0.07 mm
Tubing material DEHP-free PVC
Length 1800 mm
Unit / case 50

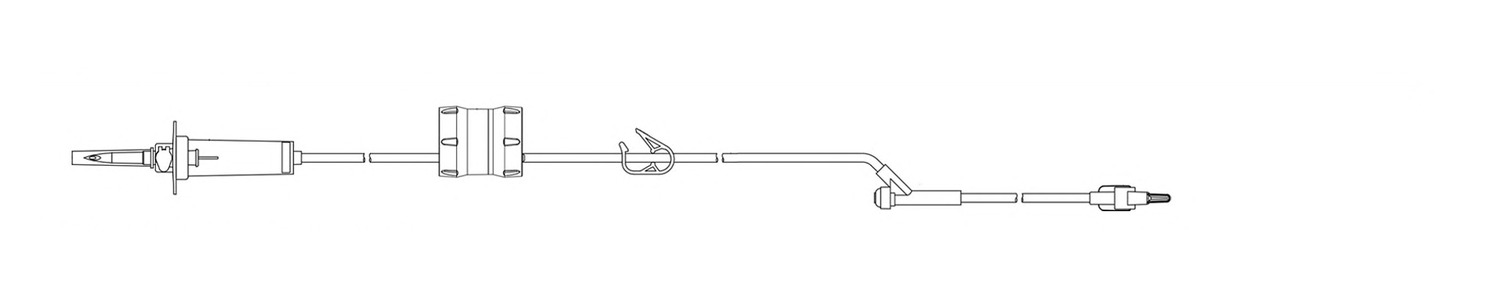

IV.GR.06
Microdrip access route
Small chamber, flow-control and defined distal connection
Configuration: Vented drip chamber · 15 um chamber filter · Flow-regulating component · Robert clamp · 1 injection site · Male luer lock with vented cap
Tubing size (ID × OD) 2.9 x 4.05 +/- 0.07 mm
Tubing material DEHP-free PVC
Length 2000 mm
Unit / case 50

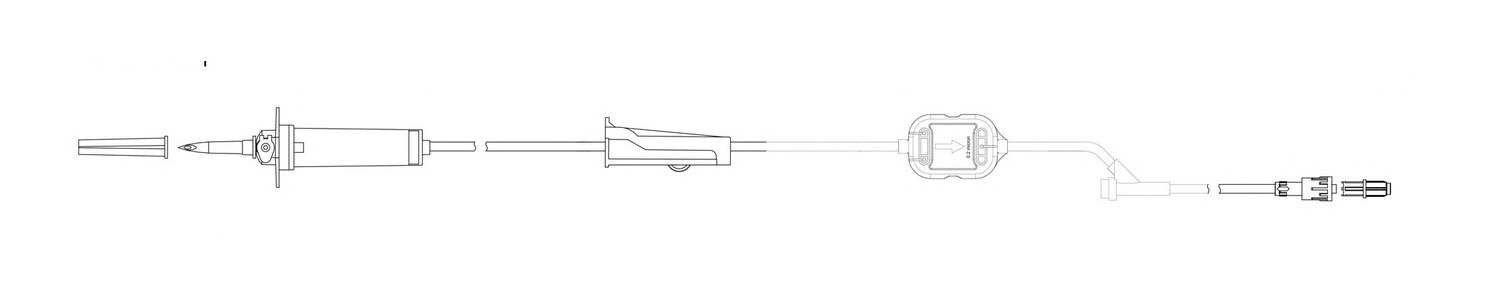

IV.GR.07
Filtered gravity route
In-line filter with injection access and luer end
Configuration: Vented drip chamber · 15 um chamber filter · Roller clamp · 0.2 um in-line precision filter · 1 injection site · Rotating male luer lock with cap
Tubing size (ID × OD) 2.9 x 4.05 +/- 0.07 mm
Tubing material DEHP-free PVC
Length 2300 mm
Unit / case 50

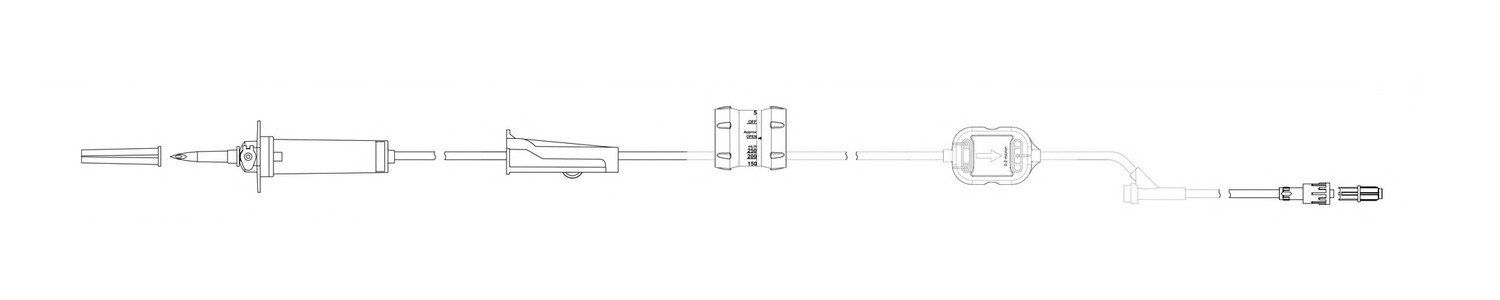

IV.GR.08
Filtered flow-control route
Filter, flow-control and injection access in one path
Configuration: Vented drip chamber · 15 um chamber filter · Roller clamp · Flow-regulating component · 0.2 um in-line precision filter · 1 injection site · Rotating male luer lock with cap
Tubing size (ID × OD) 2.9 x 4.05 +/- 0.07 mm
Tubing material DEHP-free PVC
Length 2300 mm
Unit / case 50

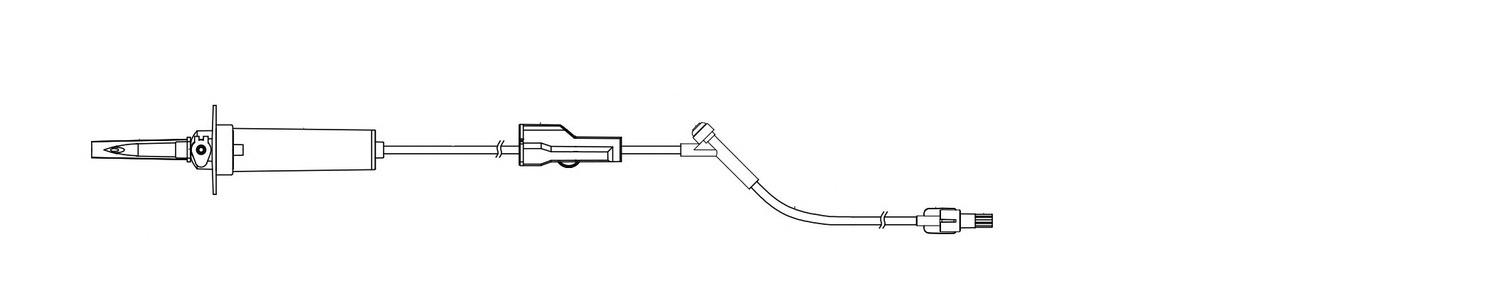

IV.GR.09
Air-stop chamber route
Air-stop chamber concept with injection access
Configuration: Air-stop vented drip chamber · Roller clamp · 1 injection site · Male luer lock with priming cap
Tubing size (ID × OD) 2.9 x 4.05 +/- 0.07 mm
Tubing material DEHP-free PVC
Length 1800 mm
Unit / case 50

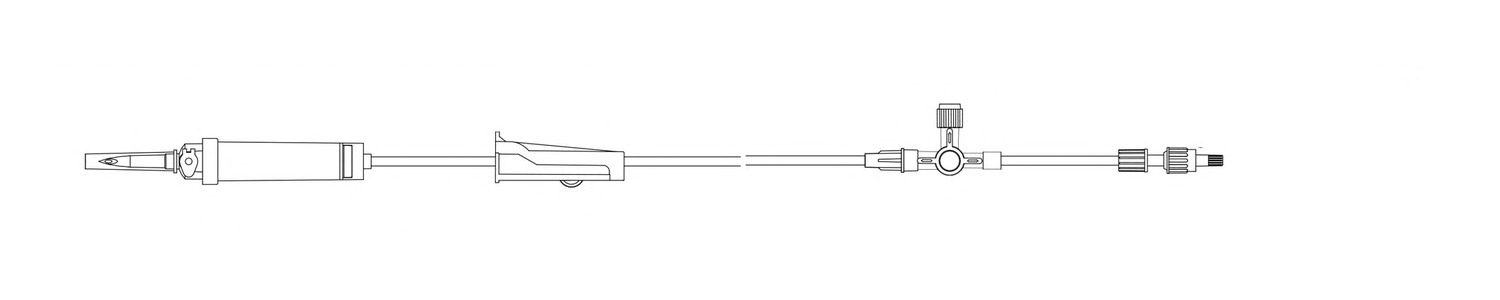

IV.GR.10
Stopcock access route
A multi-port access arrangement within a gravity set
Configuration: Vented drip chamber · 15 um chamber filter · Roller clamp · 3-way stopcock · Luer connections with cap
Tubing size (ID × OD) 2.9 x 4.05 +/- 0.07 mm
Tubing material DEHP-free PVC
Length 1800 mm
Unit / case 50

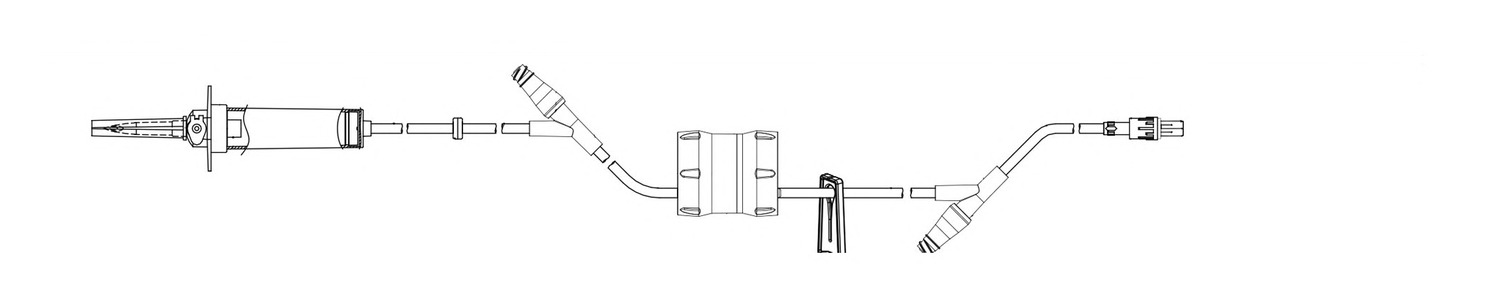

IV.GR.11
Dual needle-free access route
Multiple needle-free access points with flow control
Configuration: Vented drip chamber · 15 um chamber filter · 2 neutral-pressure needle-free access points · Flow-regulating component · Slide clamp · Luer end with cap
Tubing size (ID × OD) 2.9 x 4.05 +/- 0.07 mm
Tubing material DEHP-free PVC
Length 2500 mm
Unit / case 50

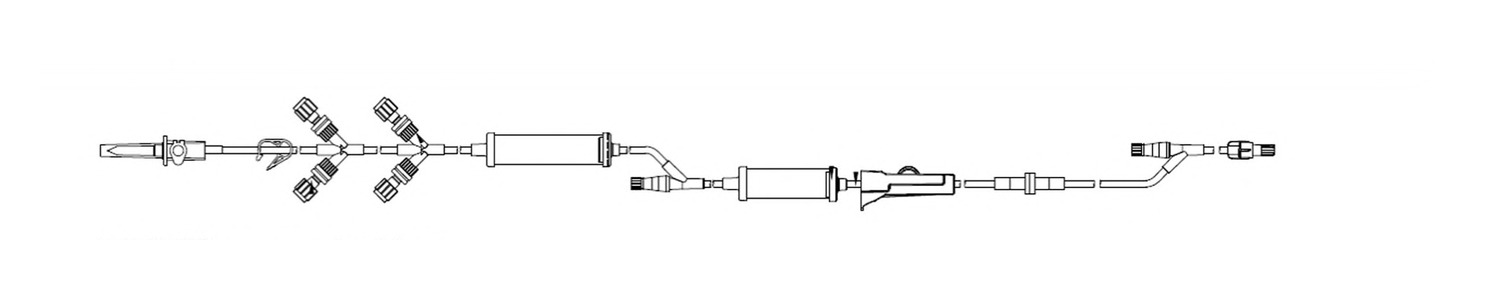

IV.GR.12
Complex multi-line route
Multiple branches, valves, chambers and access points
Configuration: Vented spike · Robert clamp · Multiple back-check valves · 2 in-line chambers · 15 um chamber filter · Roller clamp · 2 neutral-pressure needle-free access points · Back valve · Male luer lock with priming cap · Light-resistant fluid path
Tubing size (ID × OD) 2.9 x 4.05 +/- 0.07 mm
Tubing material DEHP-free PVC and inner TPU
Length 2500 mm
Unit / case 40
How to read these examples: They are catalog configuration candidates, not quotations or proof of current availability. BQ+ confirms the exact product reference, drawing, evidence and destination-market status after reviewing your inquiry.
Already have your own configuration?
Send it with your inquiry. A drawing, specification, product photo, current supplier sheet, catalog number or sample can all help BQ+ prepare the closest proposal.
What BQ+ confirms for your configuration
The final proposal is checked around your exact set.
Once we know the configuration you need, BQ+ reviews the complete fluid path before preparing a quotation, sample or technical file.
- Component sequence and connection integrity
- Tubing size, material and total length
- Chamber, filter, valve and flow-control choices
- Packaging and sterilization route
- Label and documentation requirements
- Destination-market status
Why this matters to youTwo sets can look similar but require different materials, testing, documentation or market status. Confirming these points against the final BQ+ REF helps the quotation and sample match what you actually need.
FAQ
Questions buyers ask before requesting a configuration.
Can I choose any combination of components?
Not automatically. BQ+ reviews the complete fluid path, manufacturing controls, evidence and market pathway before release.
Can you match another supplier’s catalog number?
It can start the comparison. Similar appearance or catalog text does not establish equivalence.
Are filtered and flow-regulated sets included?
Yes, as specialist routes. Performance wording is confirmed for the selected BQ+ product reference.
Are all sets under one FDA or MDR status?
No. Status depends on the product reference, configuration, site, market and current record.
