Standard pump-set configurations
Established fluid-path configurations for review against a specified pump model and operating conditions.
Pump administration sets
Looking for a pump administration set? Start with your pump.
Choose an existing configuration for a specified pump, or develop a dedicated set around your own pump platform.
Tell us your pump model

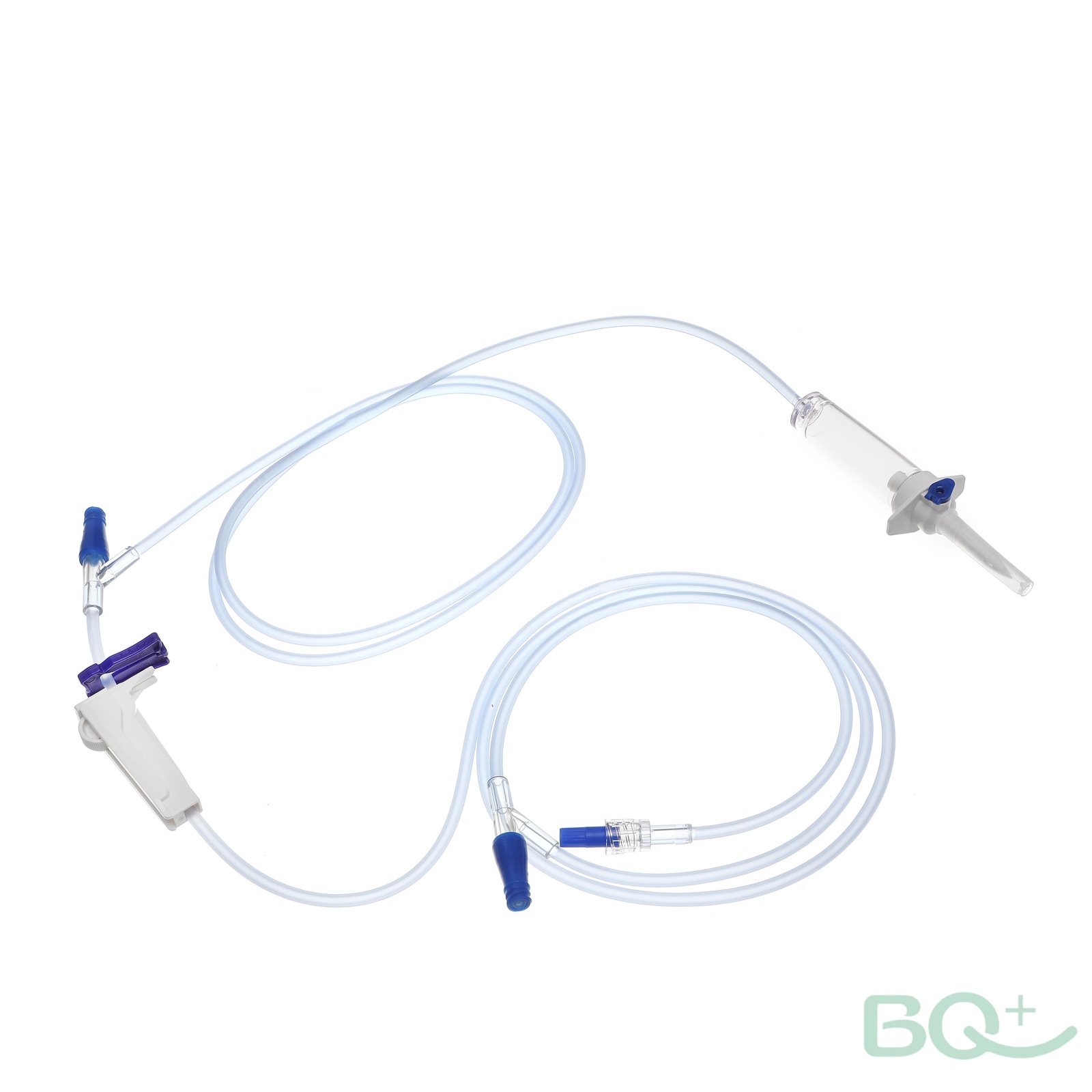

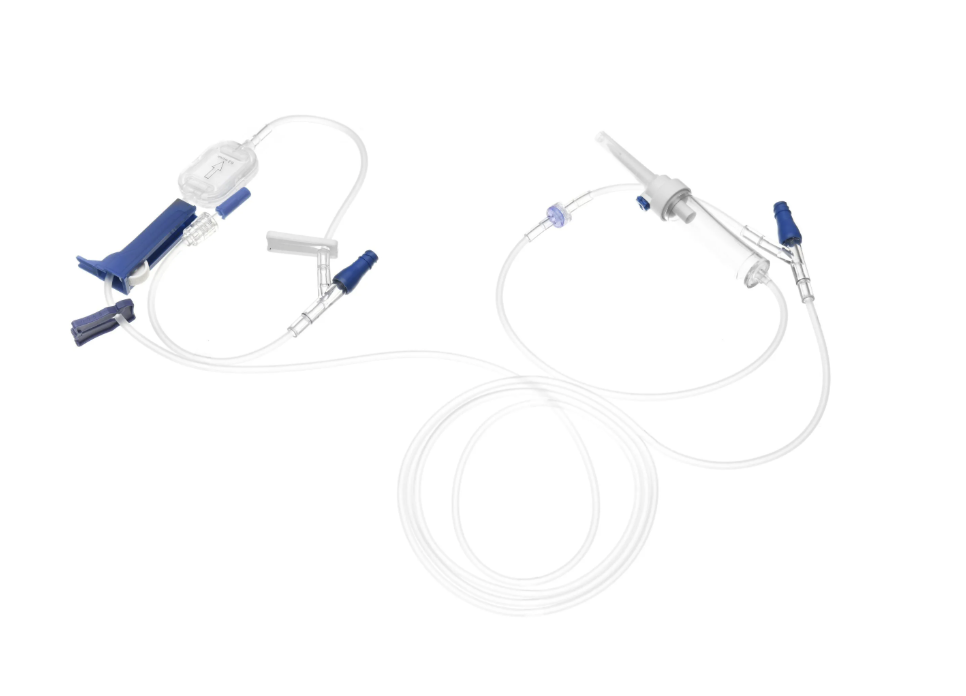

Representative BQ+ pump-set configuration
Search by pump Brand and model stay visible
Choose the fluid path Standard components and options
PVC or silicone segment Project-specific selection
OEM development Confidential interface tooling
Select a development route
Start with the pump model and operating conditions.
Use these routes to identify the closest BQ+ configuration concept. The exact REF, pump interface, operating conditions and destination-market requirements are confirmed before release.

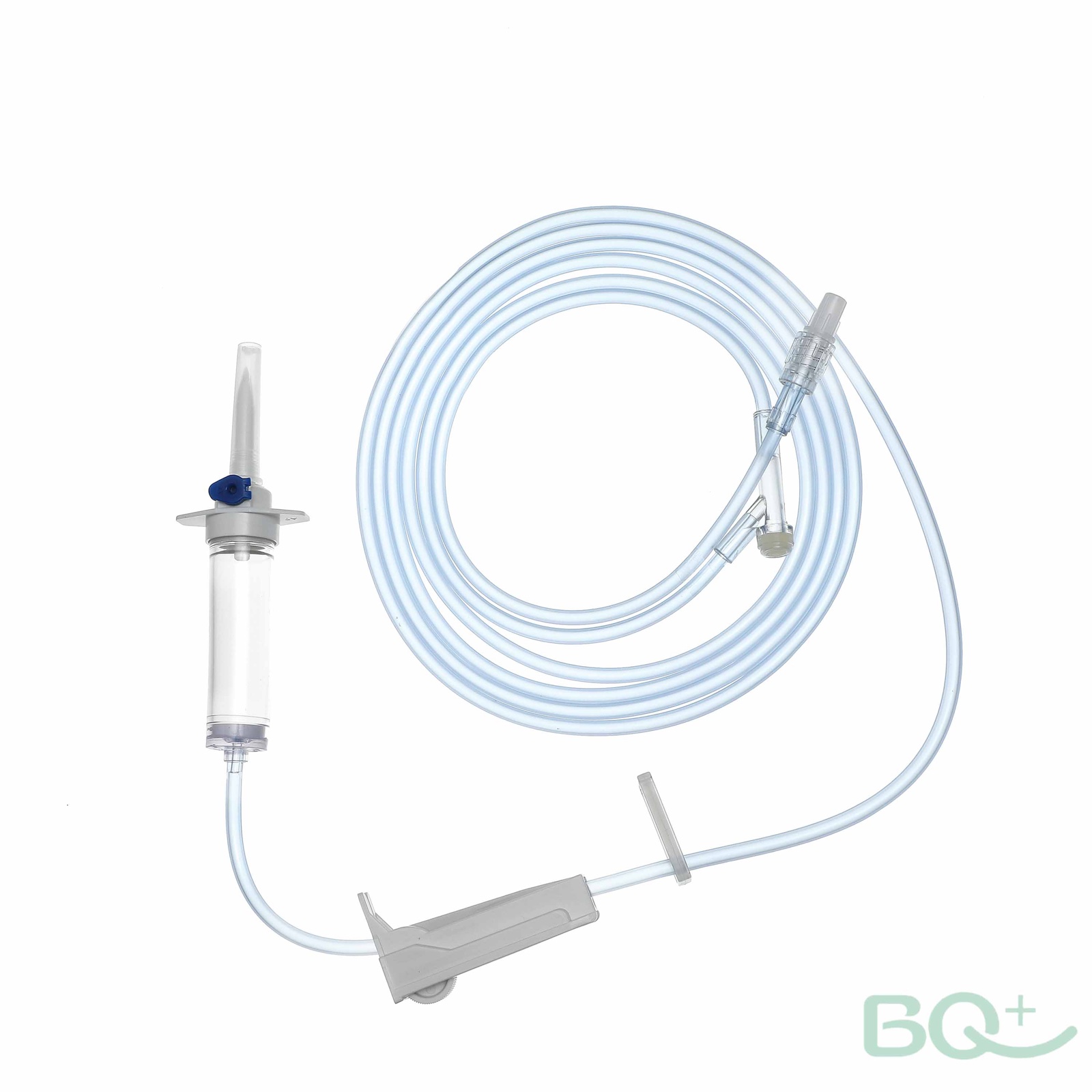

Defined pump-interface configurations
Configurations reviewed against the specified pump segment, tubing interface and intended operating range.

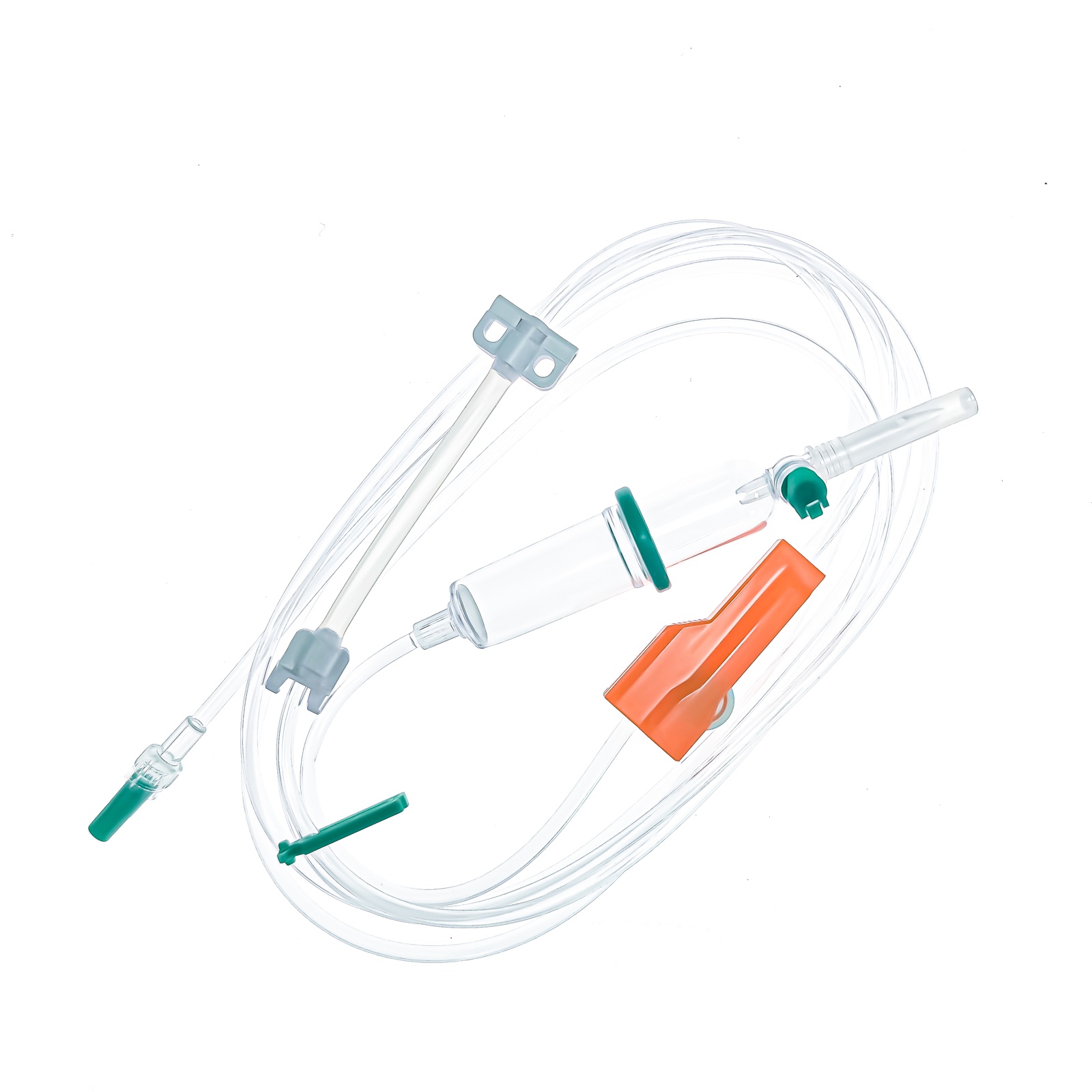

Air-stop pump-set configurations
Selected chamber and fluid-stop concepts, subject to product-specific functional and market review.
BQ catalog configurations
Compare the fluid path at a glance.
Choose the closest structure, then send the pump model and any required changes. Current availability and released specifications are confirmed by BQ+ product reference.

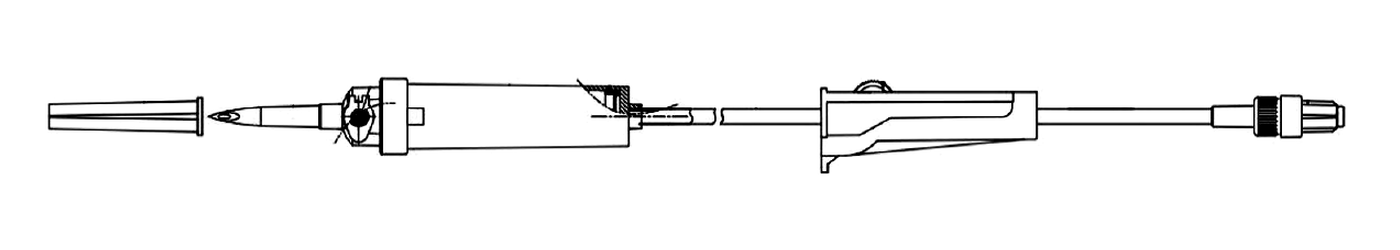

IV.PUMP.01
Base pump set
Vented drip chamber, pump segment, roller clamp and male luer connection.

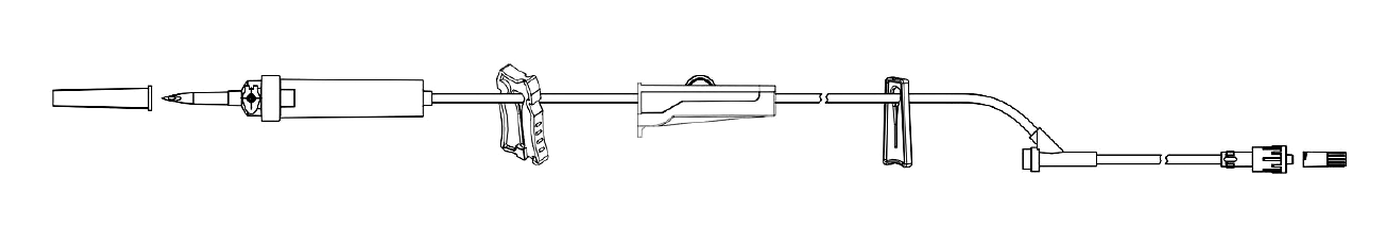

IV.PUMP.02
Single access configuration
Pump clamp, roller clamp, slide clamp and one injection access point.

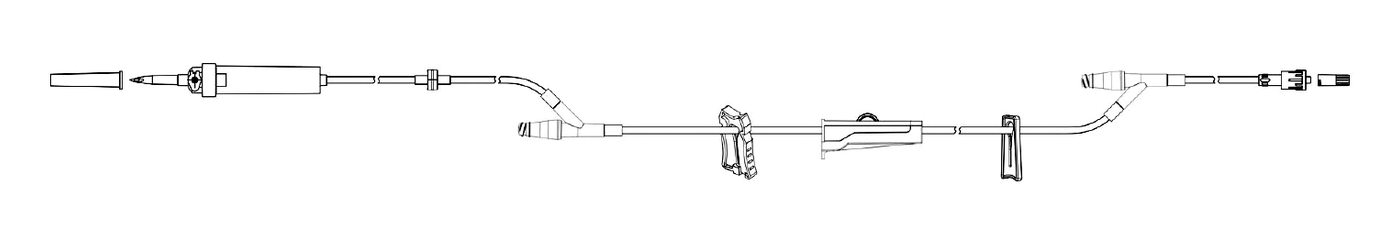

IV.PUMP.03
Dual access with check valve
Two needle-free access points with a check valve and standard flow-control components.

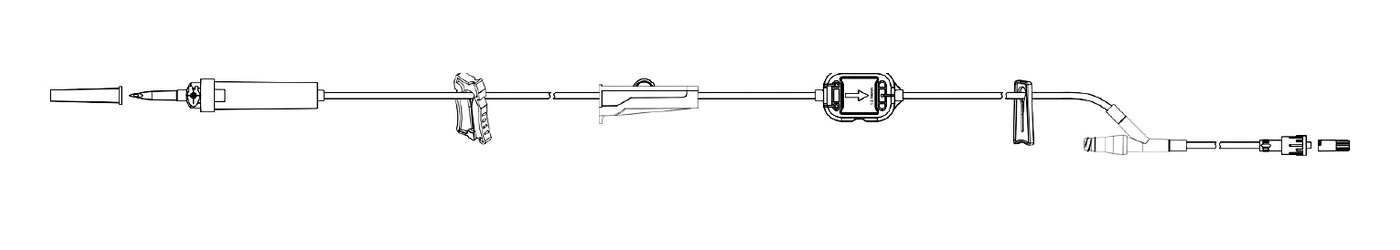

IV.PUMP.04
5 μm filter configuration
In-line liquid filter with an access point, clamps and male luer connection.

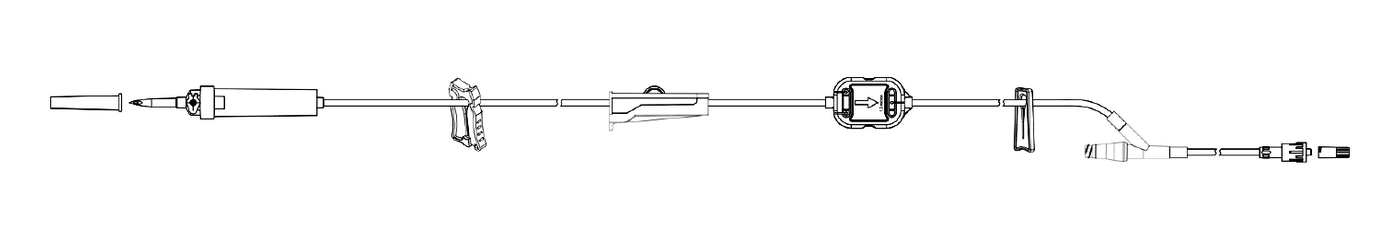

IV.PUMP.05
0.2 μm filter configuration
In-line precision filter with a needle-free access point and standard clamps.

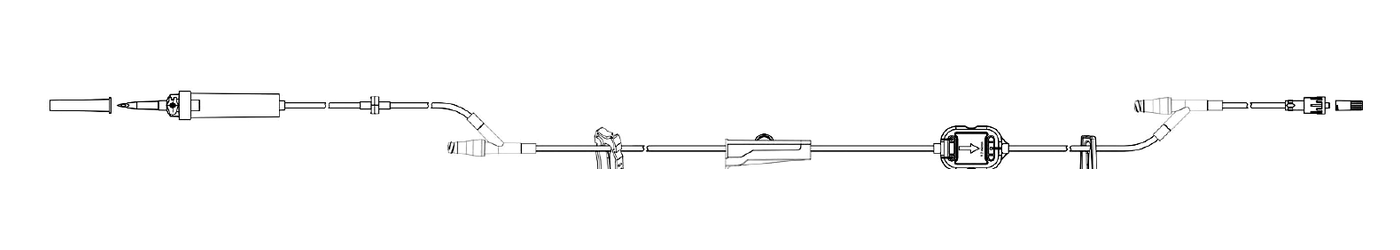

IV.PUMP.06
Extended multi-access configuration
Check valve, in-line filter and two needle-free access points in an extended fluid path.

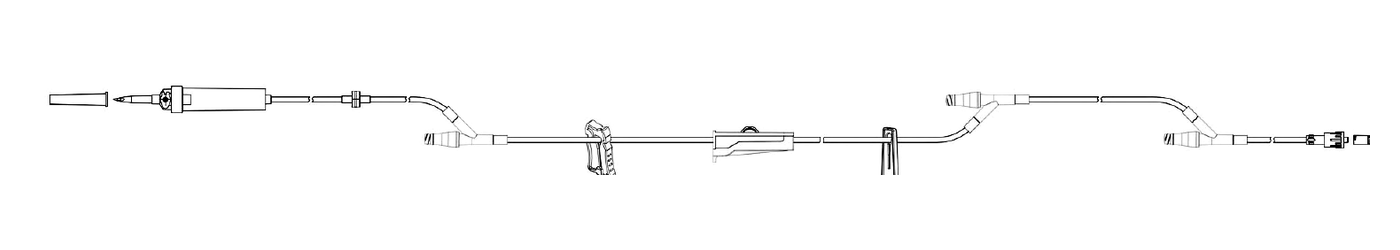

IV.PUMP.07
Three-access configuration
Three needle-free access points with a check valve and standard flow-control components.

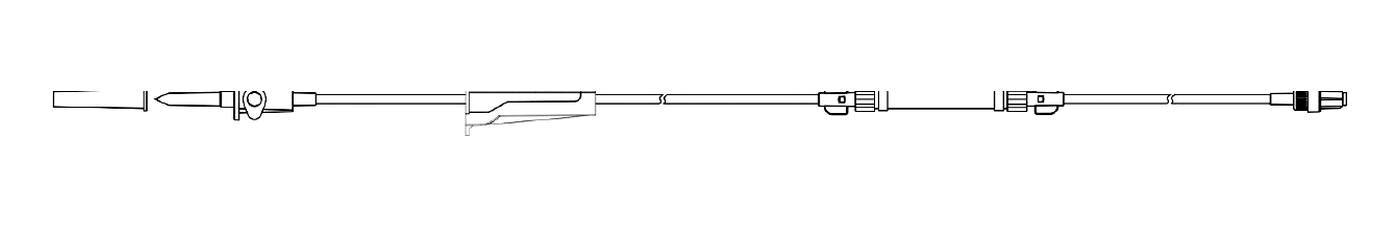

IV.PUMP.08
Silicone pump-segment configuration
Silicone pump segment with selectable upstream and downstream tubing and connections.
Product diagrams are simplified catalog illustrations and are not dimensional drawings. Configuration, material, performance, regulatory status, packaging and supply availability must be confirmed for the selected BQ+ product reference.
Choose your pump segment
Two tubing platforms, then build the rest of the set.
The pump segment is one part of the product. Around it, BQ+ offers a broad selection of standard infusion-set components for the complete fluid path.
PVC pump tubing
A BQ+ pump-segment platform for projects where PVC tubing is selected. Material, dimensions, pump fit and applicable performance claims are confirmed for the specified product and evidence package.
Alternative platform
Silicone pump tubing
Silicone pump segments can be configured with the required upstream and downstream connections and the selected standard fluid-path components.
🔒
Custom pump-interface tooling — project-specific and confidential
Anti-free-flow mechanisms, stop-flow clamps, pump-loading clips, holders, cassettes and other pump-interface parts are generally specific to the pump manufacturer’s design. BQ+ can support tooling development and controlled manufacturing based on approved design inputs. Customer-specific drawings, dimensions and component details are not publicly disclosed.
Complete the fluid path after the pump segment
Choose the standard components around your pump segment.
The pump segment is selected for the specified pump. The remaining fluid path can then use the same broad BQ+ component platform shown below.
Shared component range
See what can be configured around the selected pump segment.
Each category shows four representative choices where the catalog contains more than four options, with the wider range linked to the exact catalog pages.
Infusion chambers
34 catalog models
A1F 72 mm · vented · with filter · 20 drops/ml
A2F 72 mm · vented · with filter · 60 drops/ml
A3F 62 mm · vented · with filter · 20 drops/ml
A4F 62 mm · vented · with filter · 60 drops/ml
+ 30 more choices Catalog pp.31-39 →
Robert & slide clamps
6 catalog models
Robert clamp · white Representative Robert clamp
Robert clamp · purple Representative Robert clamp
C03 slide clamp Representative slide clamp
C01 slide clamp Representative slide clamp
+ 2 more choices Catalog p.40 →
Roller clamps
4 catalog models
RC101-B 56 mm precision V
RC102-B 55 mm precision V
RC103 45 mm precision V
RC108 Air-stop set route
All catalog choices shown Catalog p.44 →
Y injection sites
9 catalog models
ST103-Y Latex-free · easy handle

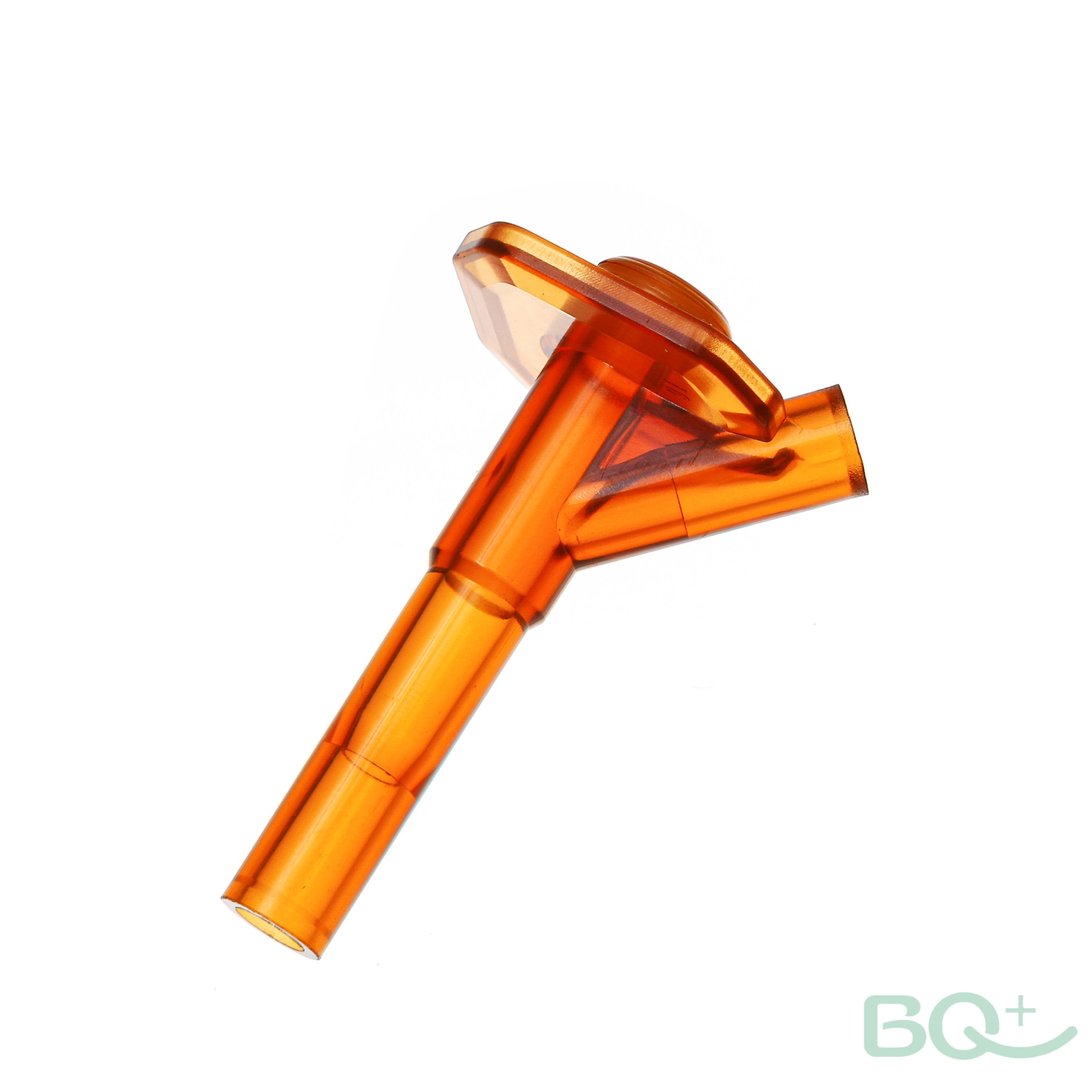

ST103-OR Light-resistant route

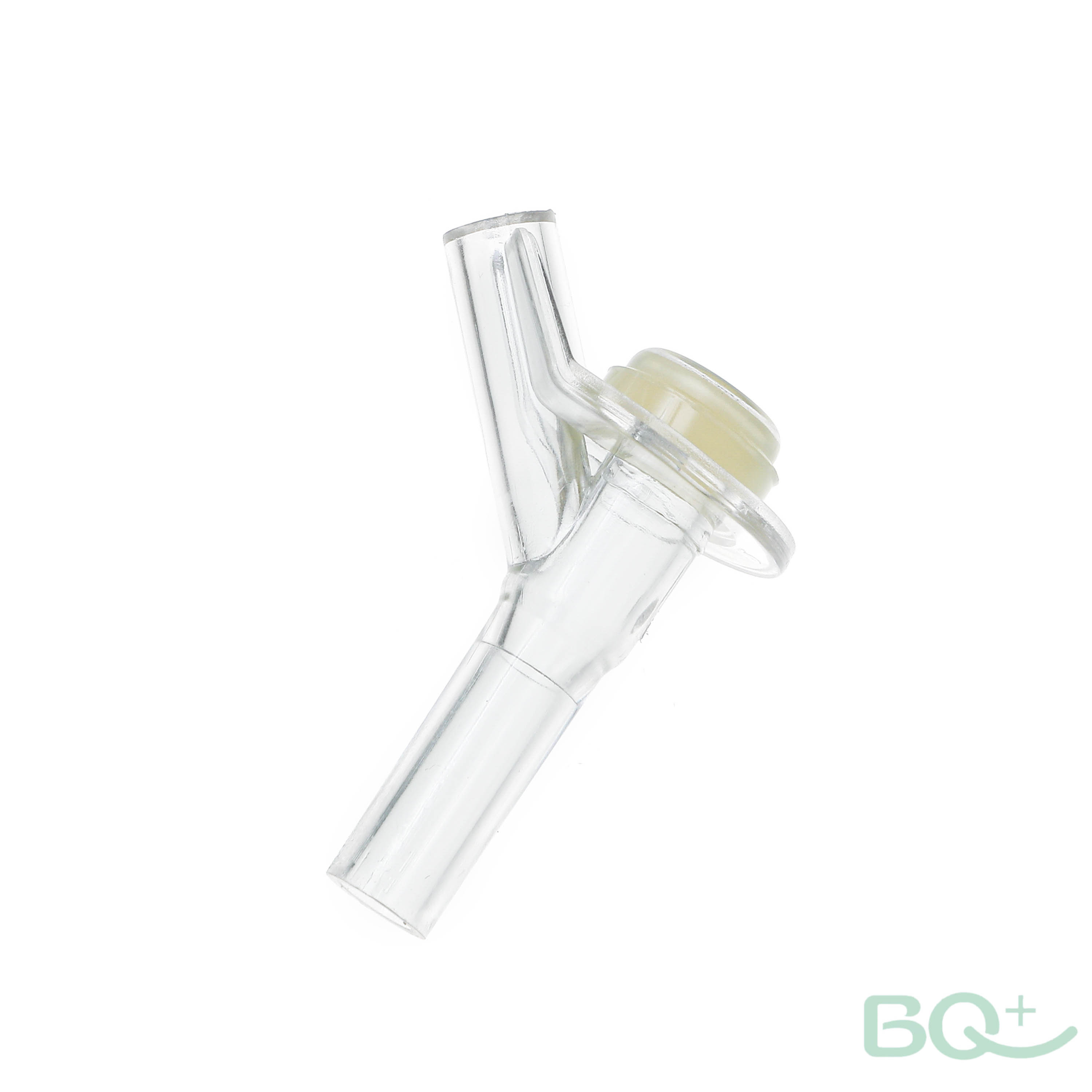

ST104-Y Compact easy-handle route

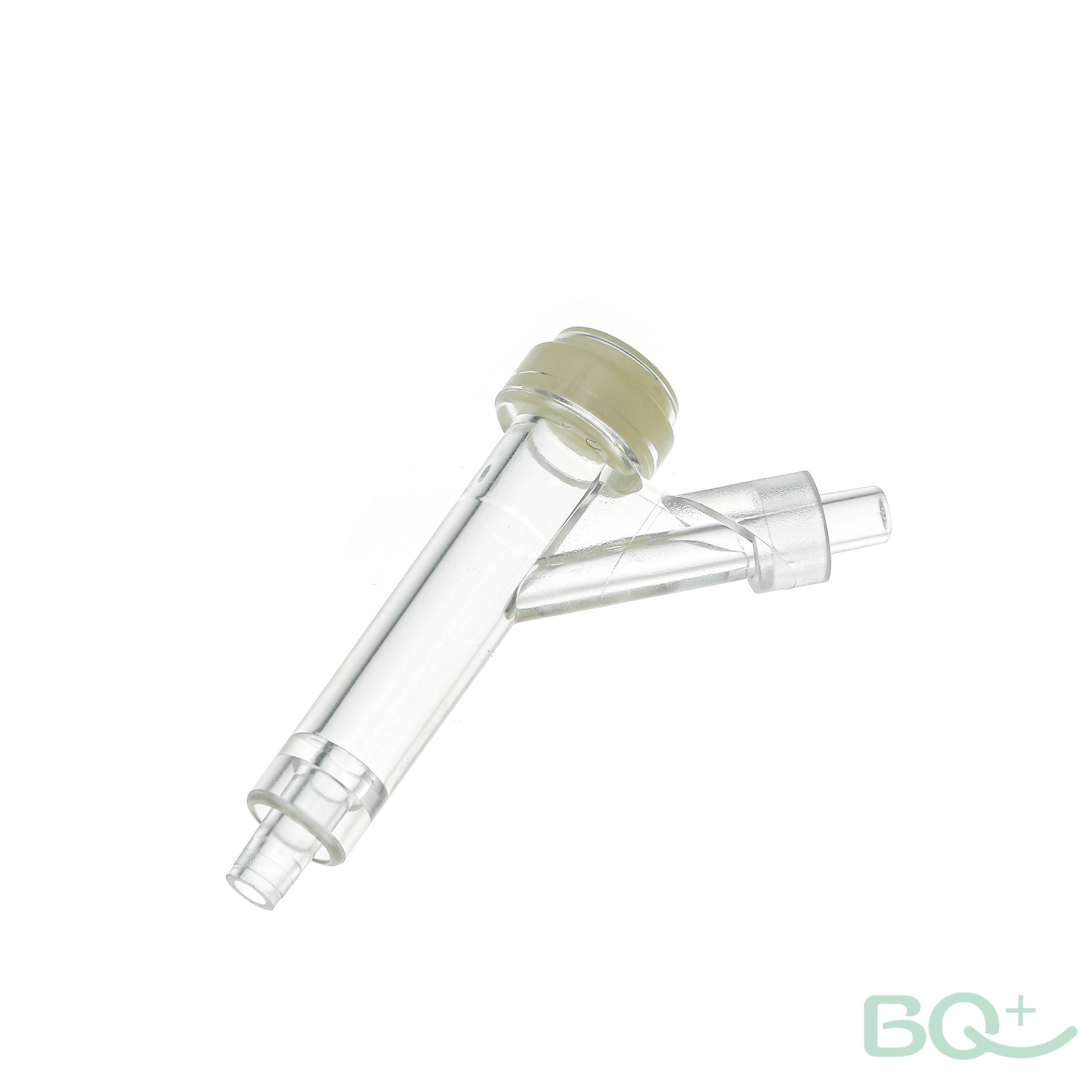

ST110-IR Latex-free Y-site route
+ 5 more choices Catalog p.43 →
Needle-free injection sites
8 catalog models

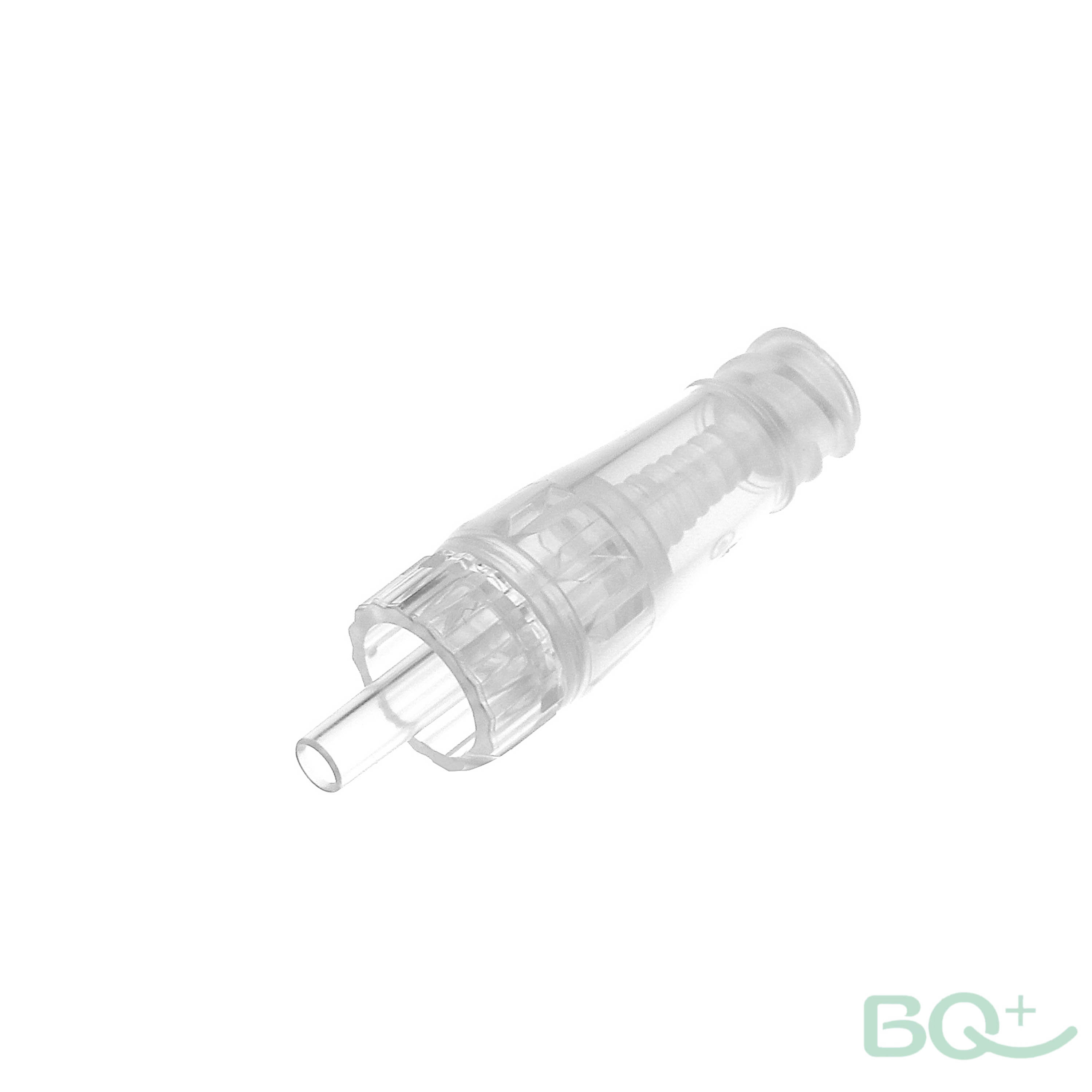

NFV-S16 Neutral-pressure · straight

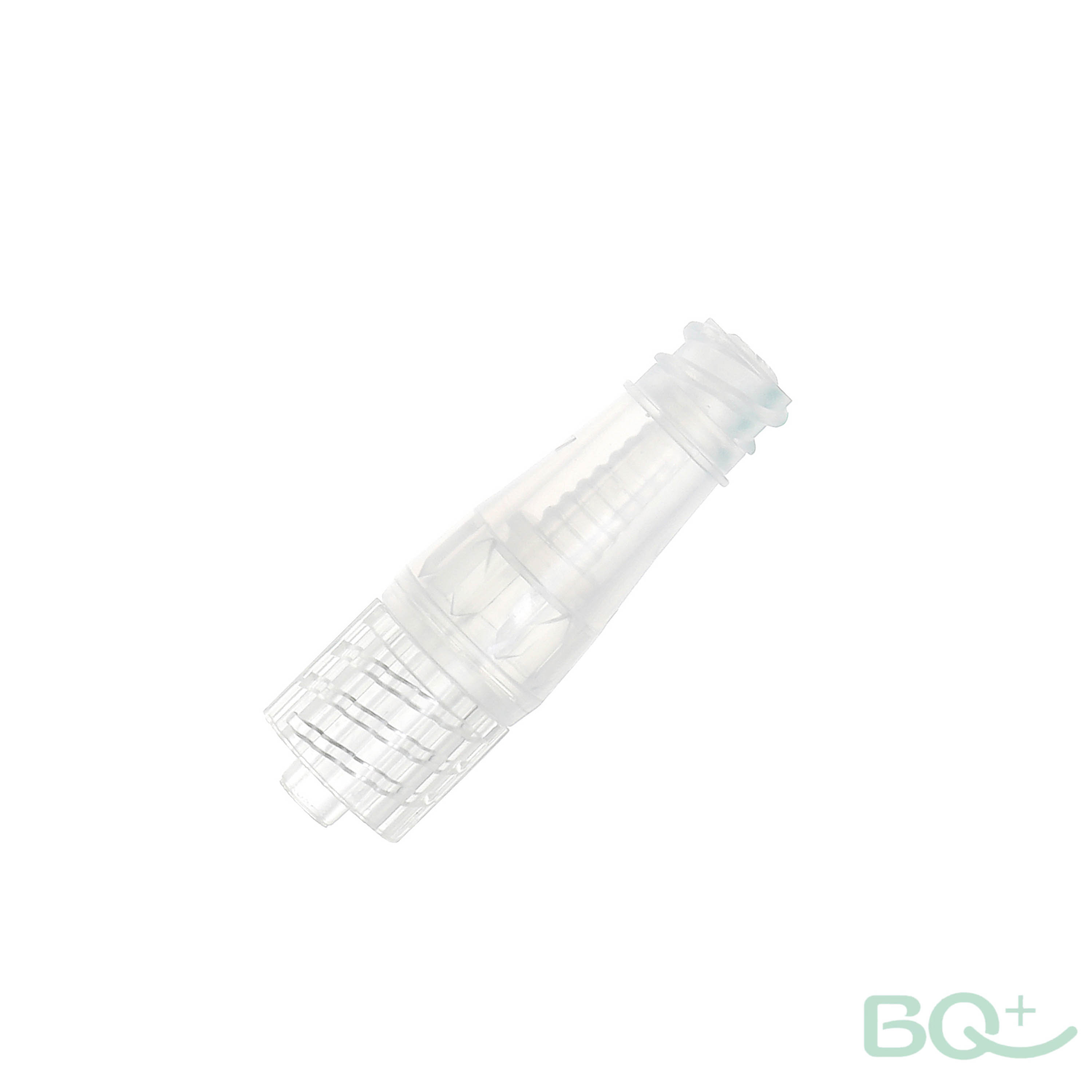

NFV-L16 Neutral-pressure · female-luer route

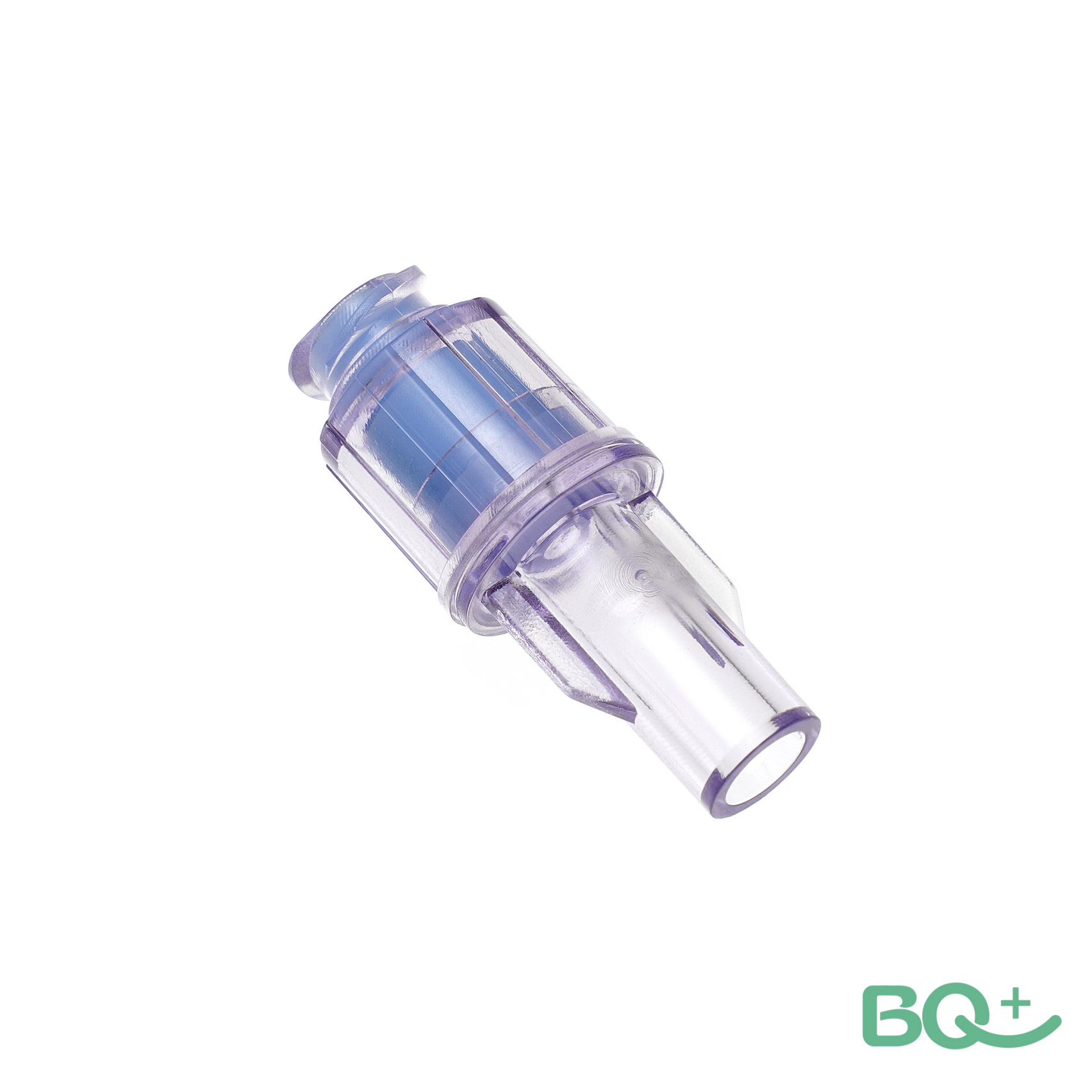

NFV-S17 Negative-pressure · straight

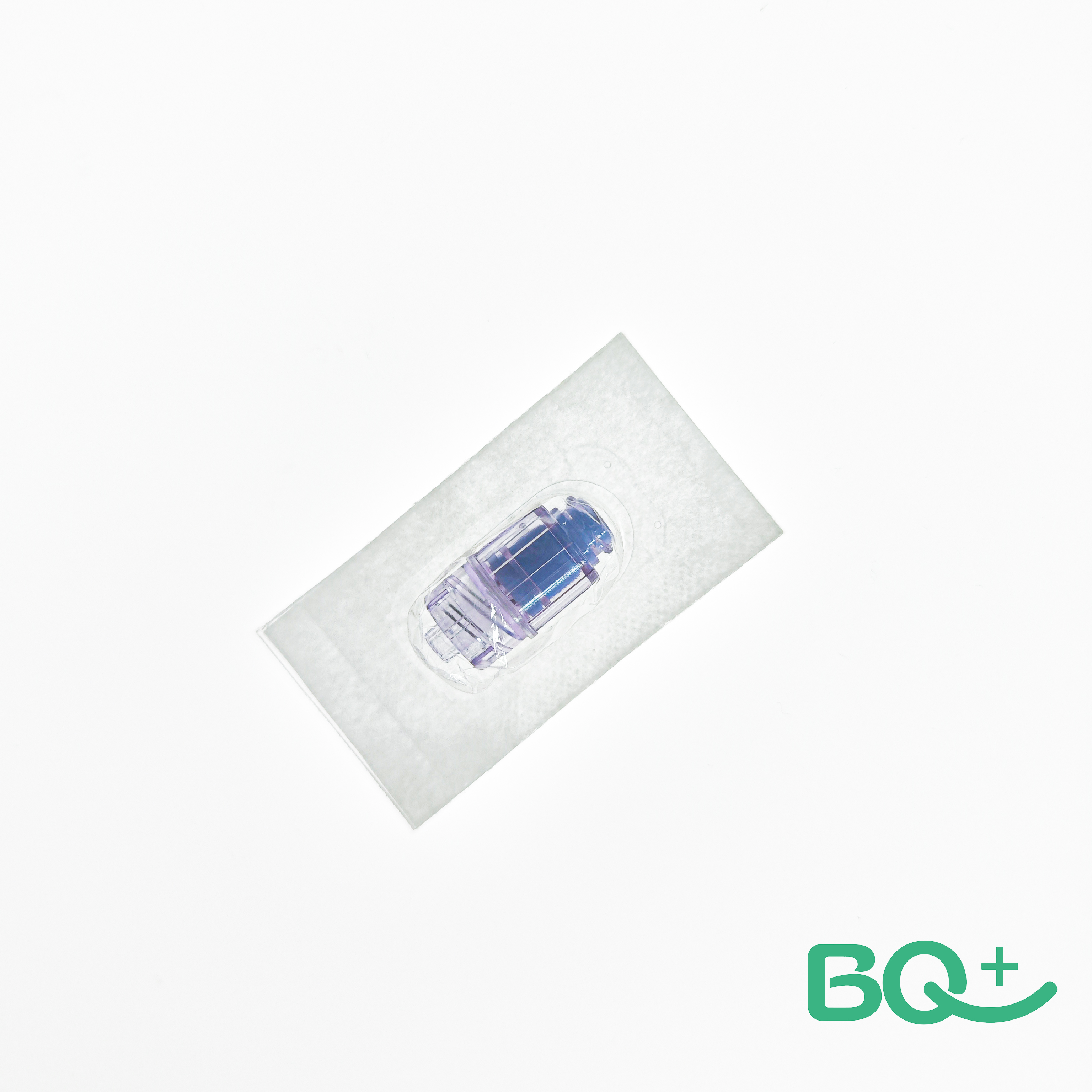

NFV-L17 Negative-pressure · female-luer route
+ 4 more choices Catalog pp.17 & 19 →
Spikes
5 catalog models

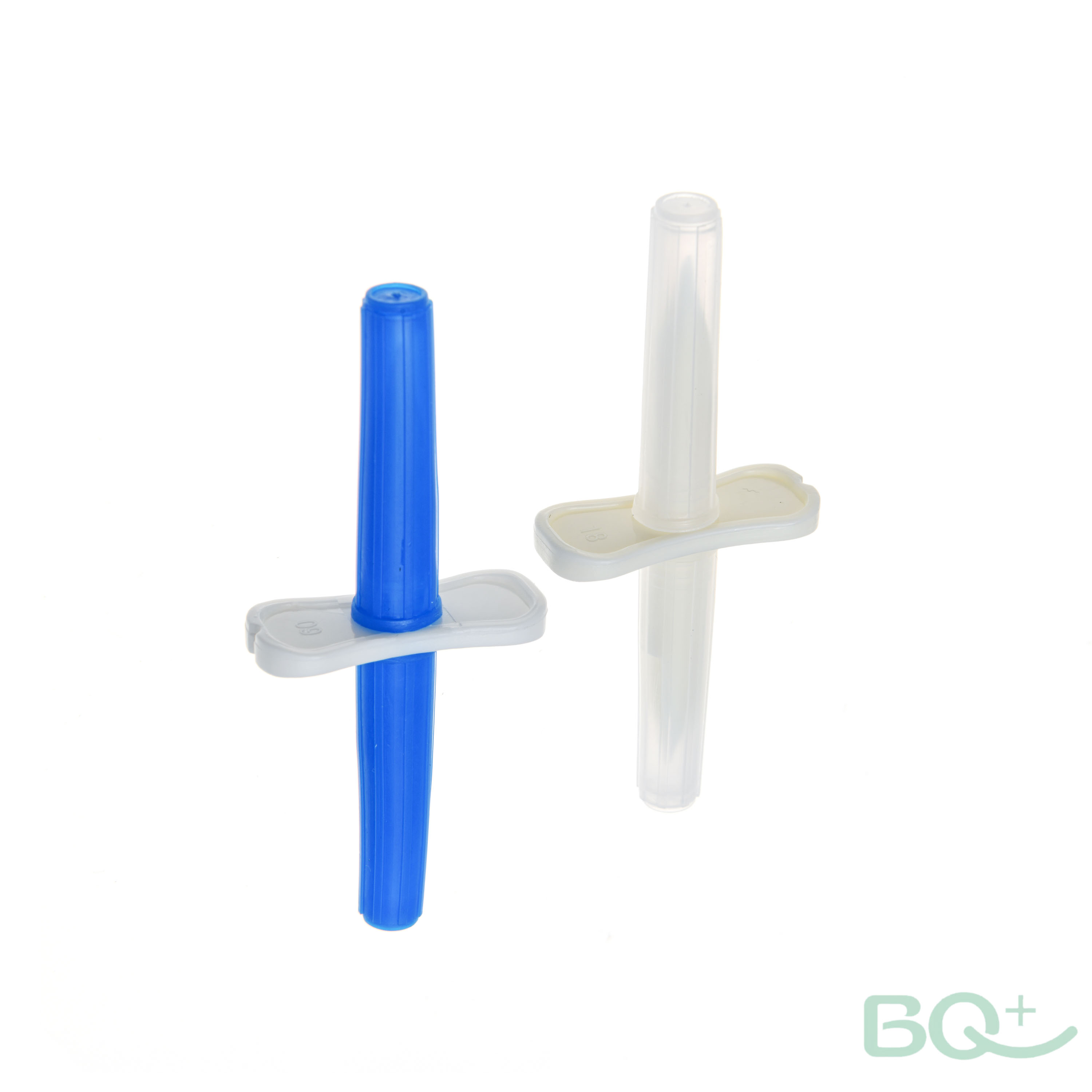

ST03 Double-ended transfer spike

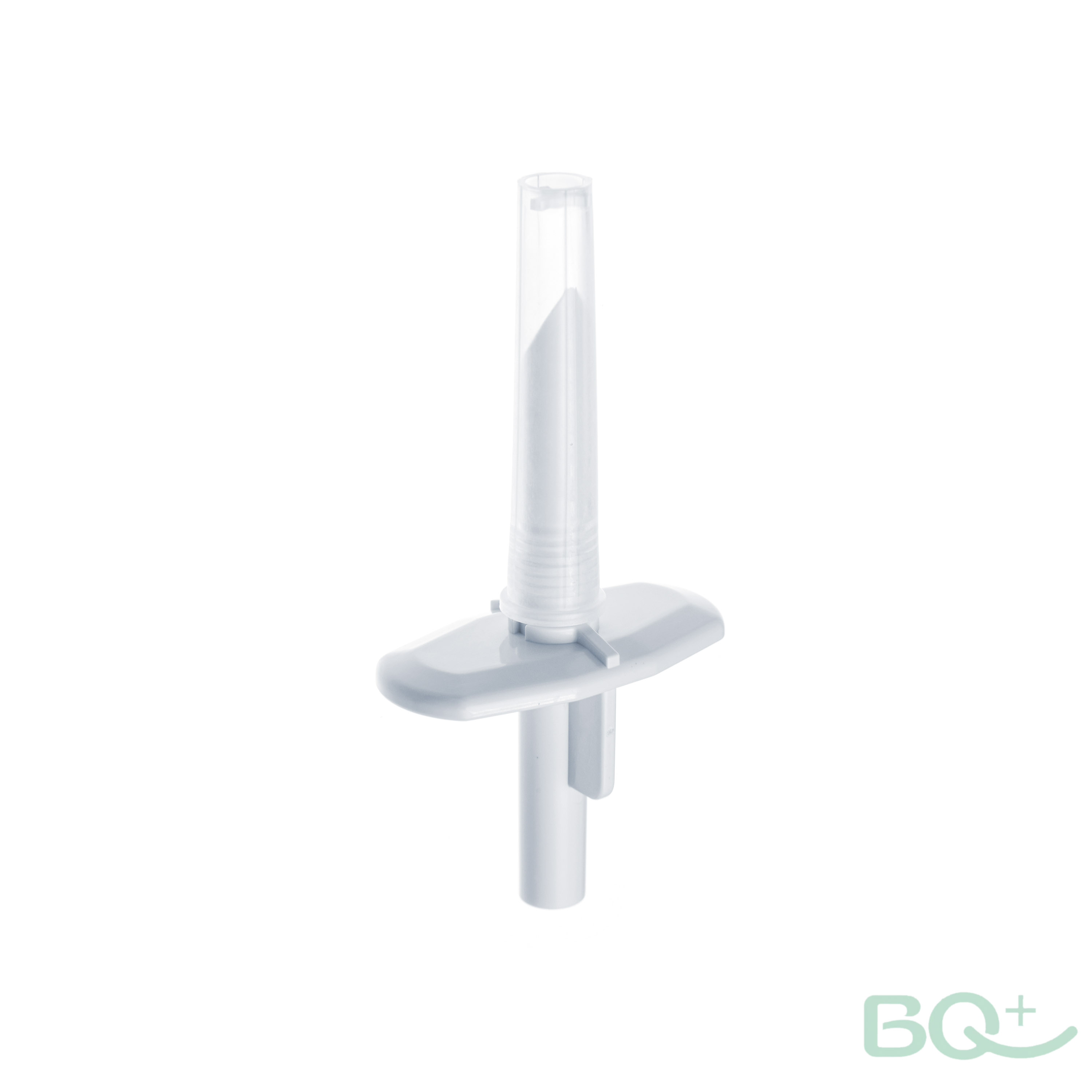

ST02 Spike for 4.1 mm OD tubing

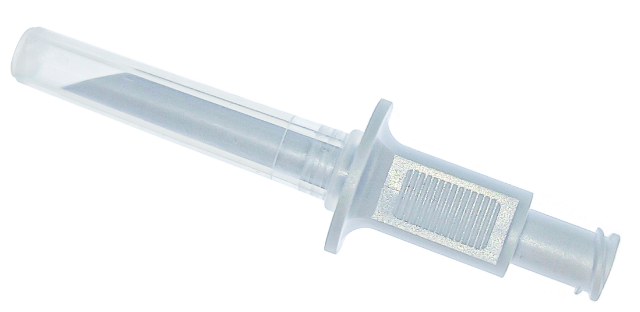

ST04-FLL Spike with female luer lock

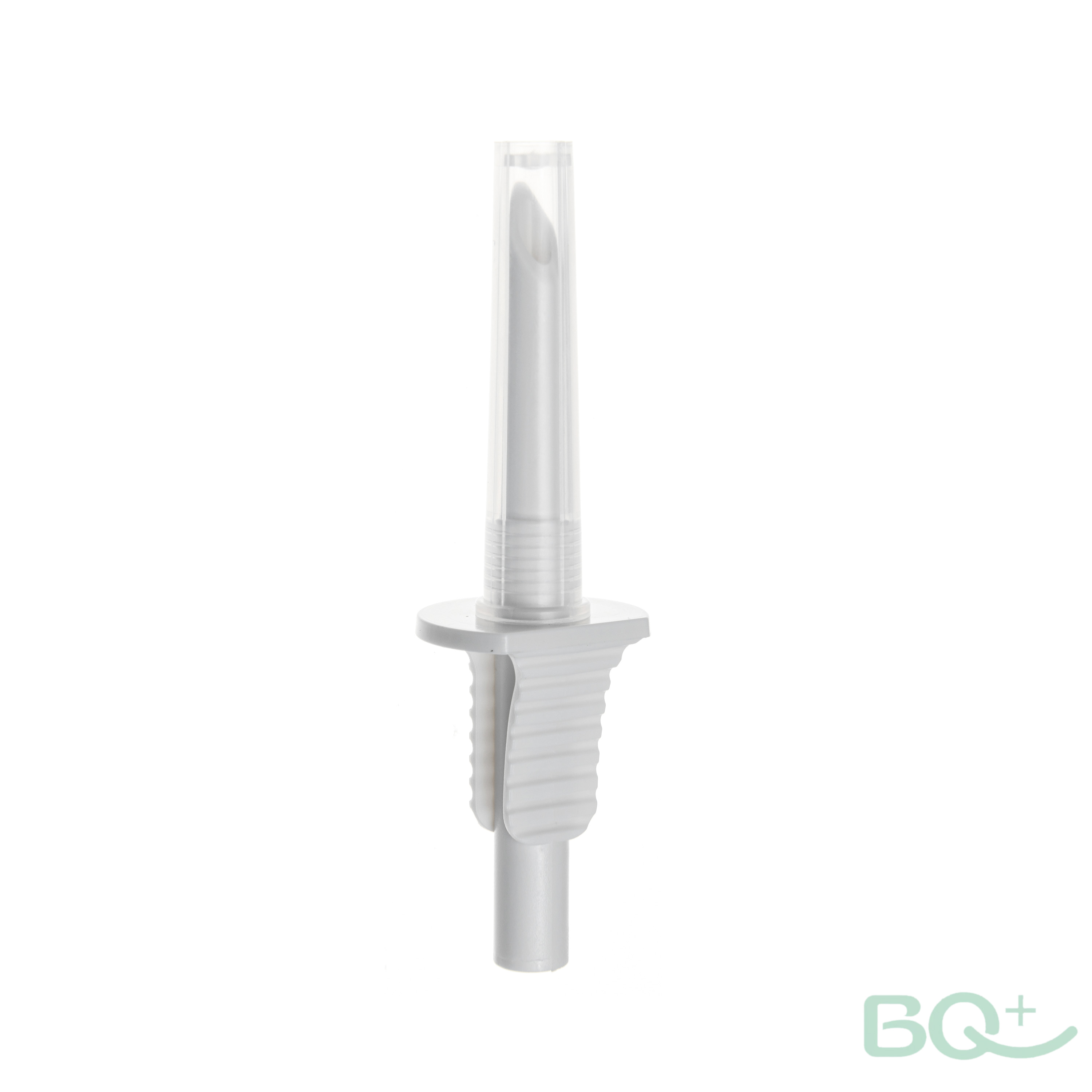

ST18 Non-vented spike route
+ 1 more choice Catalog p.41 →
Back check valves
4 catalog models
BCV06 Female–male ends
BCV08 Male–tube ends
BCV10 Female–tube ends
BCV12 Tube–tube ends
All catalog choices shown Catalog p.41 →
3-way stopcocks
3 catalog models
SK46 3-way stopcock design
SK47 In-line stopcock for tubing
SK50 Rotating-luer design
All catalog choices shown Catalog p.15 →
IV filters
6 catalog models

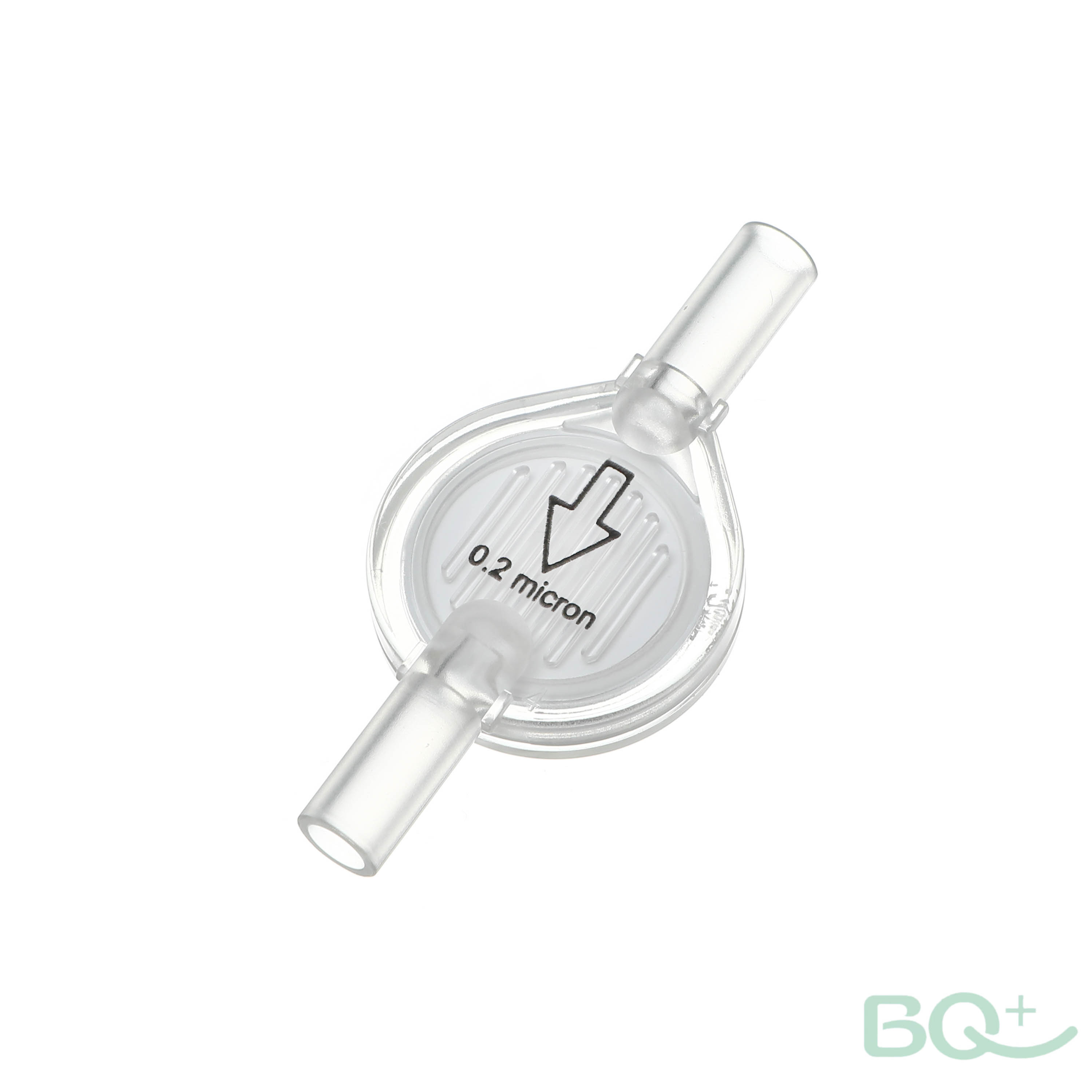

BTT-0.2-T 0.2 μm catalog route
BTT-1.2-T 1.2 μm catalog route
BTT-5-HT 5 μm catalog route

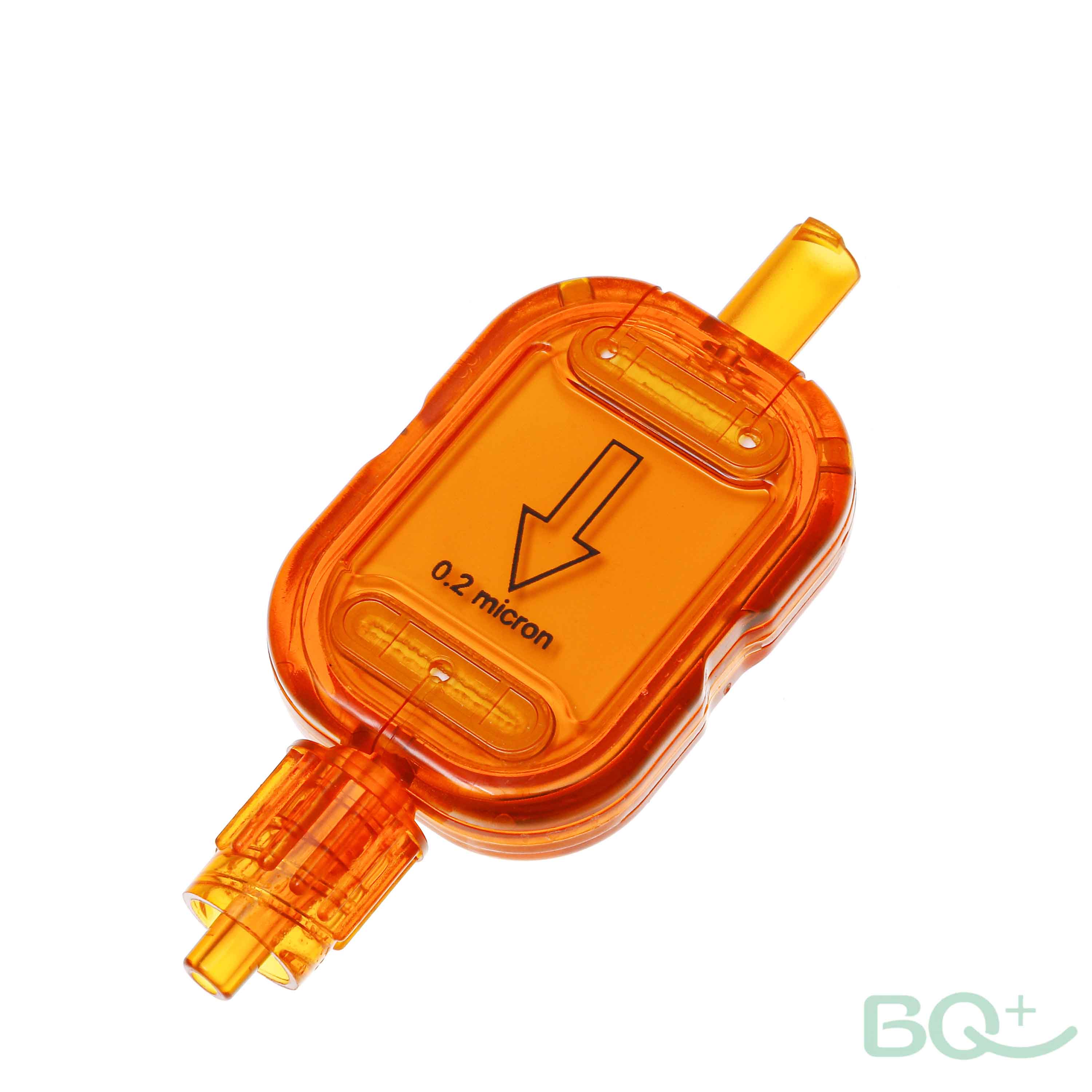

AFRM-0.2-HAM 0.2 μm light-resistant route
+ 2 more choices Catalog p.23 →
Flow regulators
2 catalog models
FR-9 Single scale · 20–250 mL/h
FR-14 Double scale · 20–250 mL/h
All catalog choices shown Catalog p.21 →
Burette upper covers
2 catalog models
Standard upper cover Representative single upper cover

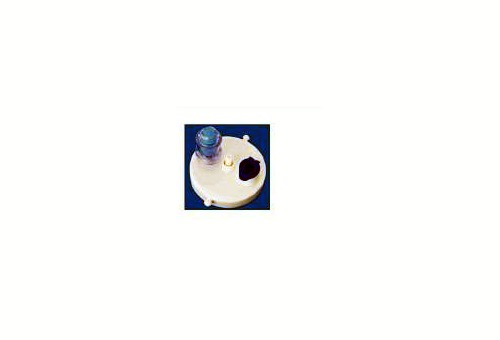

Needle-free upper cover Upper cover with needle-free access
All catalog choices shown Catalog p.26 →
Burette chambers
4 catalog models
100 mL chamber Transparent chamber route
150 mL chamber Transparent chamber route

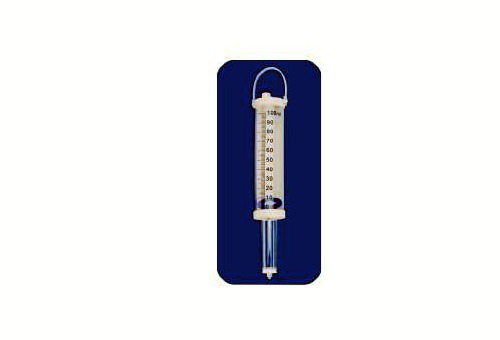

100 mL chamber · alternate Alternate transparent chamber design

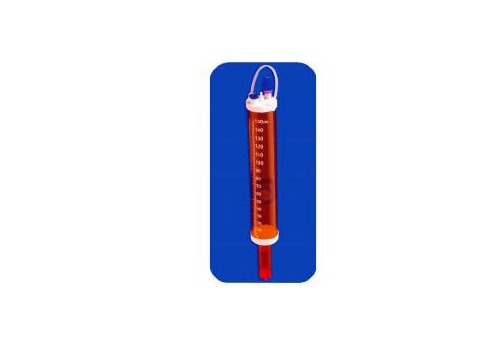

150 mL light-resistant chamber Light-resistant chamber route
All catalog choices shown Catalog p.26 →
Female luer locks
5 catalog models
FLL01 Rotating female luer lock
TC01 Female luer lock
FLL02 Female luer lock
FLL05 Female luer lock for tubing
+ 1 more choice Catalog p.45 →
Male luer locks
16 catalog models
MLL02 Male luer lock with flashback route
MLL03 Male luer lock
MLL04 Male luer lock for extension
MLL31 Undetachable spin luer lock
+ 12 more choices Catalog pp.45-46 →
HT-series caps
6 catalog models

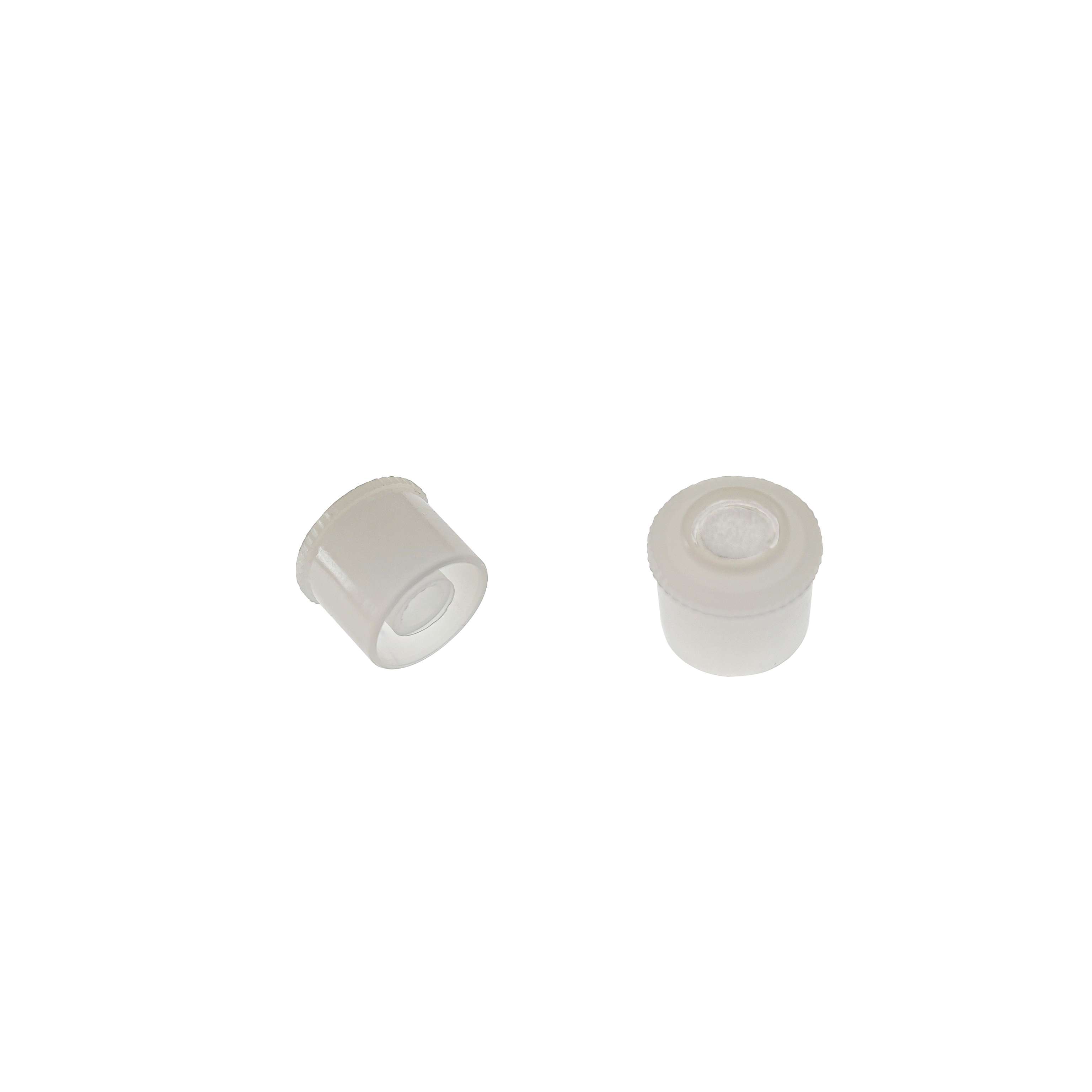

HT178 Prime Stop Cap
HT152 Stopcock cap
HT153 Cap with hole

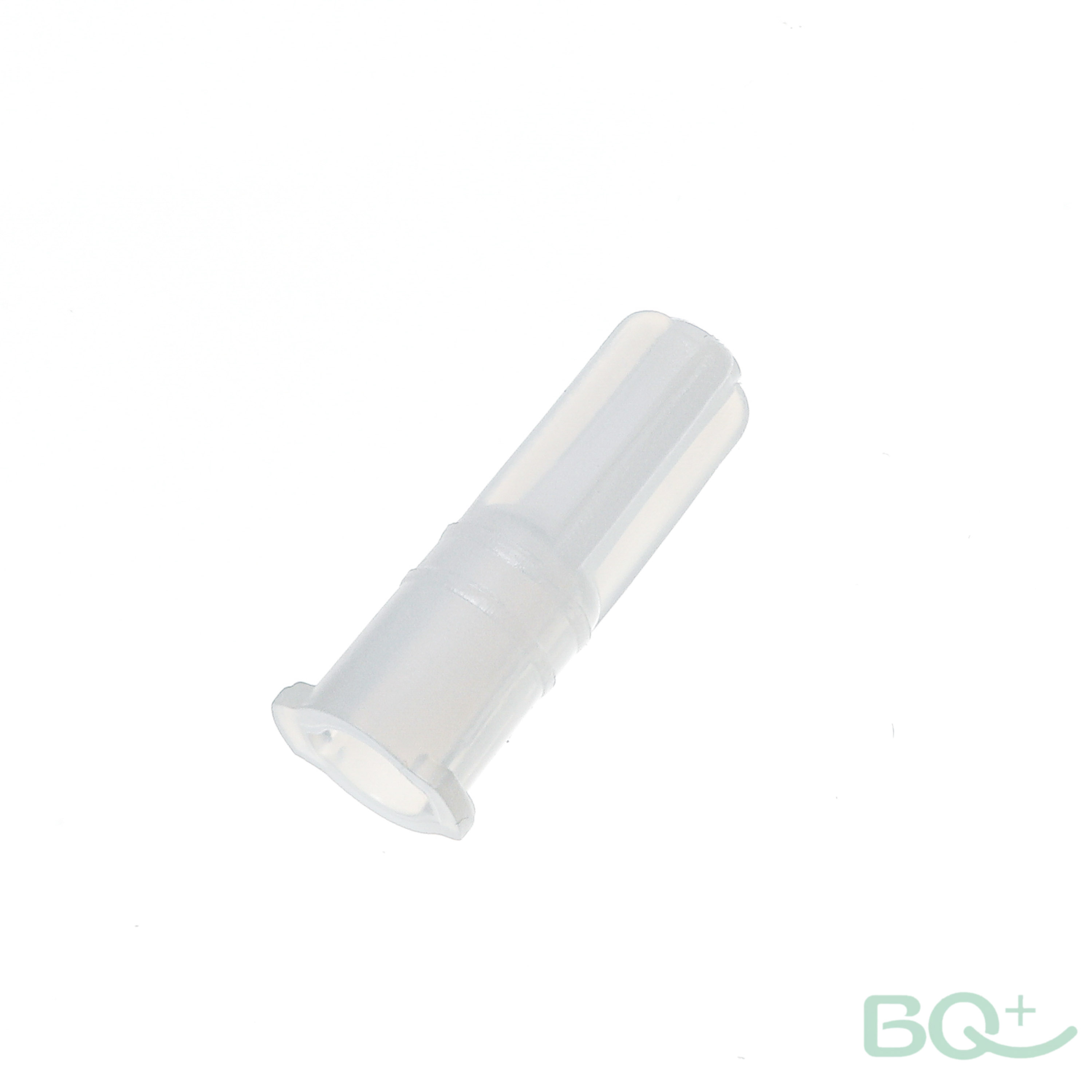

HT107 Protective cap
+ 2 more choices Catalog p.46 →
These are shared component-selection references. Pump tubing, loading parts, anti-free-flow mechanisms and other pump-specific interfaces remain configuration- and project-specific.
Build the complete fluid path
A broader platform for pump-dedicated consumables
The final arrangement depends on the intended application, workflow and evidence requirements. Each function is evaluated for the defined project.
IV
Standard I.V. Administration
Container interface, drip chamber, tubing, clamps, access points and patient-end connection around the target pump.
FL
Filtered or Light-protected Paths
Selected filtration or light-protection functions evaluated with the finished fluid path and defined test conditions.
BT
Blood Transfusion
Project-specific review of filtration, materials, operating conditions, pump interface and market pathway.
EN
Enteral & Nutrition Delivery
Dedicated nutrition-delivery configurations separated from I.V. products with appropriate connectors and risk controls.
ML
Burette, Extension & Multi-line
Branches, access points, connectors, check valves and other functions considered within the defined fluid path.
2S
Second-source Development
A market reference or current set can start comparison. Equivalence is not assumed from appearance or catalog number alone.
Availability and performance are confirmed by controlled configuration—not by a generic option list.
A practical route
From requirement review to commercial release
Each stage answers a different question and creates a clearer handoff between the customer team and BQ+.
Requirement review
Define the pump, application, market, reference product, fluid path, packaging and open questions.
Interface & configuration study
Compare the request with documented component and set platforms and identify the development gap.
Staged samples
Separate layout, pump-fit, functional, pilot-process and validation samples by purpose.
Evidence plan
Agree the tests and records needed for the selected pump, configuration, intended use and market.
Design transfer & release
Align drawings, BOM, specifications, manufacturing controls, packaging and change responsibilities.
What BQ+ confirms for your configuration
The final proposal is checked around your exact product.
Once we know the configuration you need, BQ+ reviews the complete fluid path before preparing a quotation, sample or technical file.
Pump loading, fit & retention
Pump-segment consistency
Flow under defined conditions
Applicable pump responses
Leakage & connection strength
Priming & residual volume
Valve, filter or light protection
Packaging, sterilization & shelf life
From components to controlled supply
One coordinated path from fluid-path concept to repeatable product definition
Development scope
BQ+ can coordinate component selection, tubing, interfaces, finished-set assembly, packaging and sterilization planning within one development workflow.
The exact manufacturing scope is confirmed for each project. “Coordinated” does not mean every process is automatically in-house.
Control points
- Product-reference and drawing control
- Component and material traceability
- Incoming, in-process and release requirements
- Brand-owner and manufacturer document responsibilities
- Material, supplier, tooling, design and process change review
- Forecast, scale-up and supply-continuity planning
FAQ
Questions project teams ask first
Can BQ+ make a set for our infusion pump?
BQ+ can evaluate a dedicated set around a customer-specified pump. Final compatibility is limited to the defined pump model and validated set configuration.
Do we need to provide a finished drawing?
No. A pump, current set, dimensional specification, sketch or marked-up sample can begin the review.
Are early samples ready for validation?
Not automatically. Layout and pump-fit samples may support concept or interface review but may not represent the intended production process.
What is the typical development lead time?
Timing depends on requirement maturity, platform fit, tooling or material changes, sample stages, evidence, packaging, sterilization and market pathway. A project plan follows the initial review.
How is regulatory status confirmed?
By product reference, configuration, intended use, manufacturing site, destination market and current record. One clearance or certificate is not automatically extended to a new pump-specific set.
