BQ+ Medical

Oncology Infusion Set

4 weeks Lead Time + 99% on-time delivery

*Free Sample + Delivery

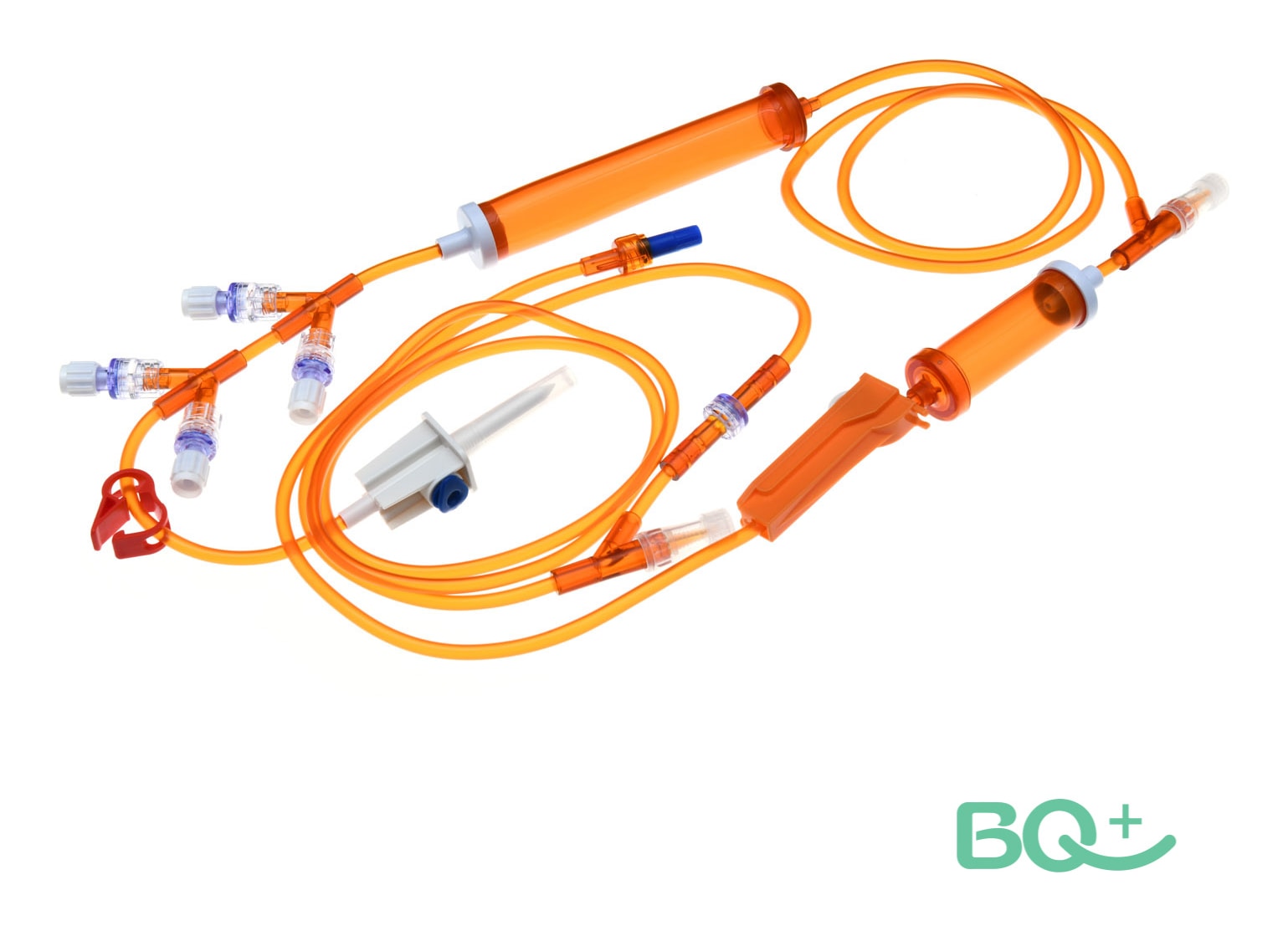

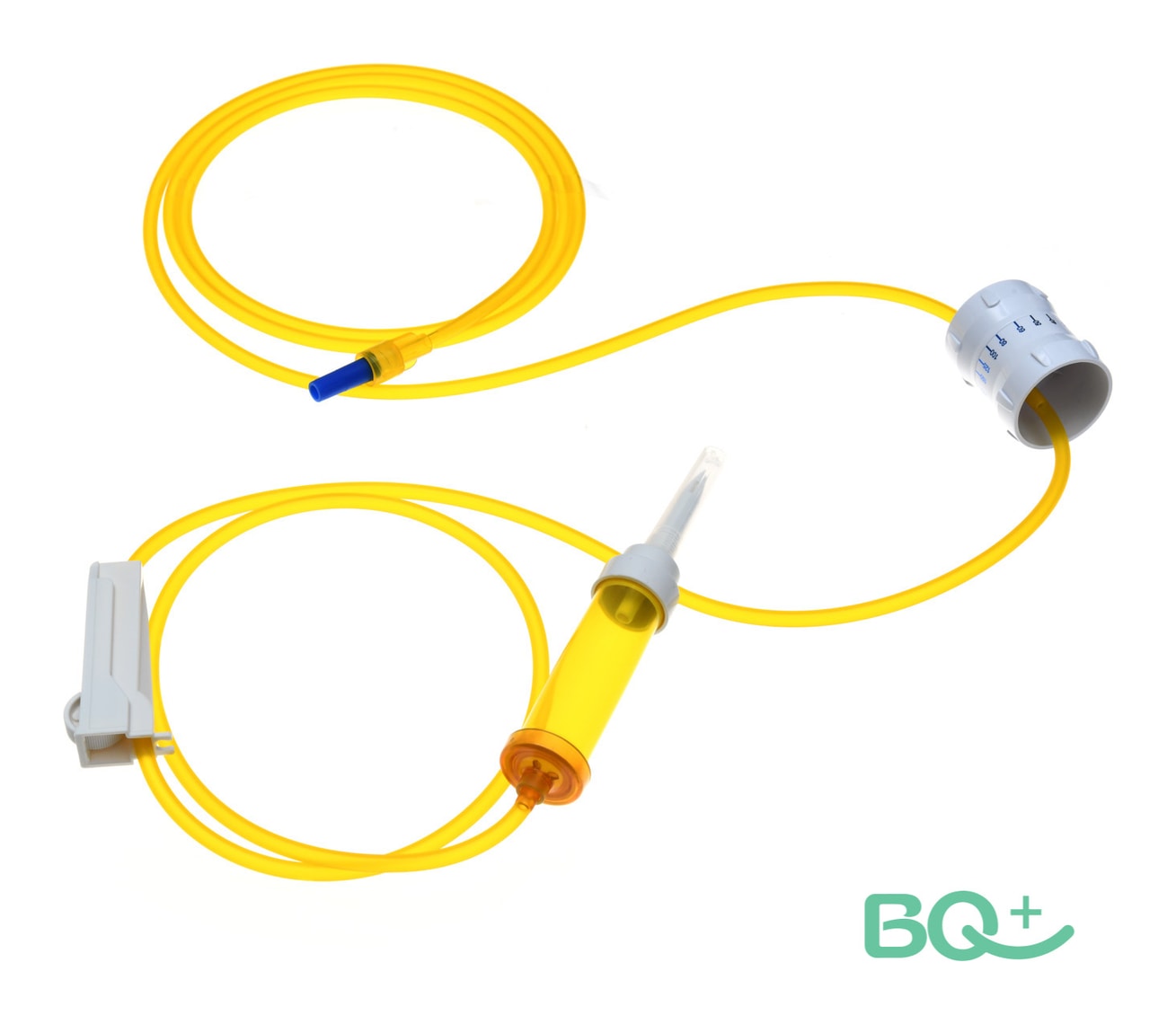

Oncology Infusion set - Chemotherapy Infusion Set

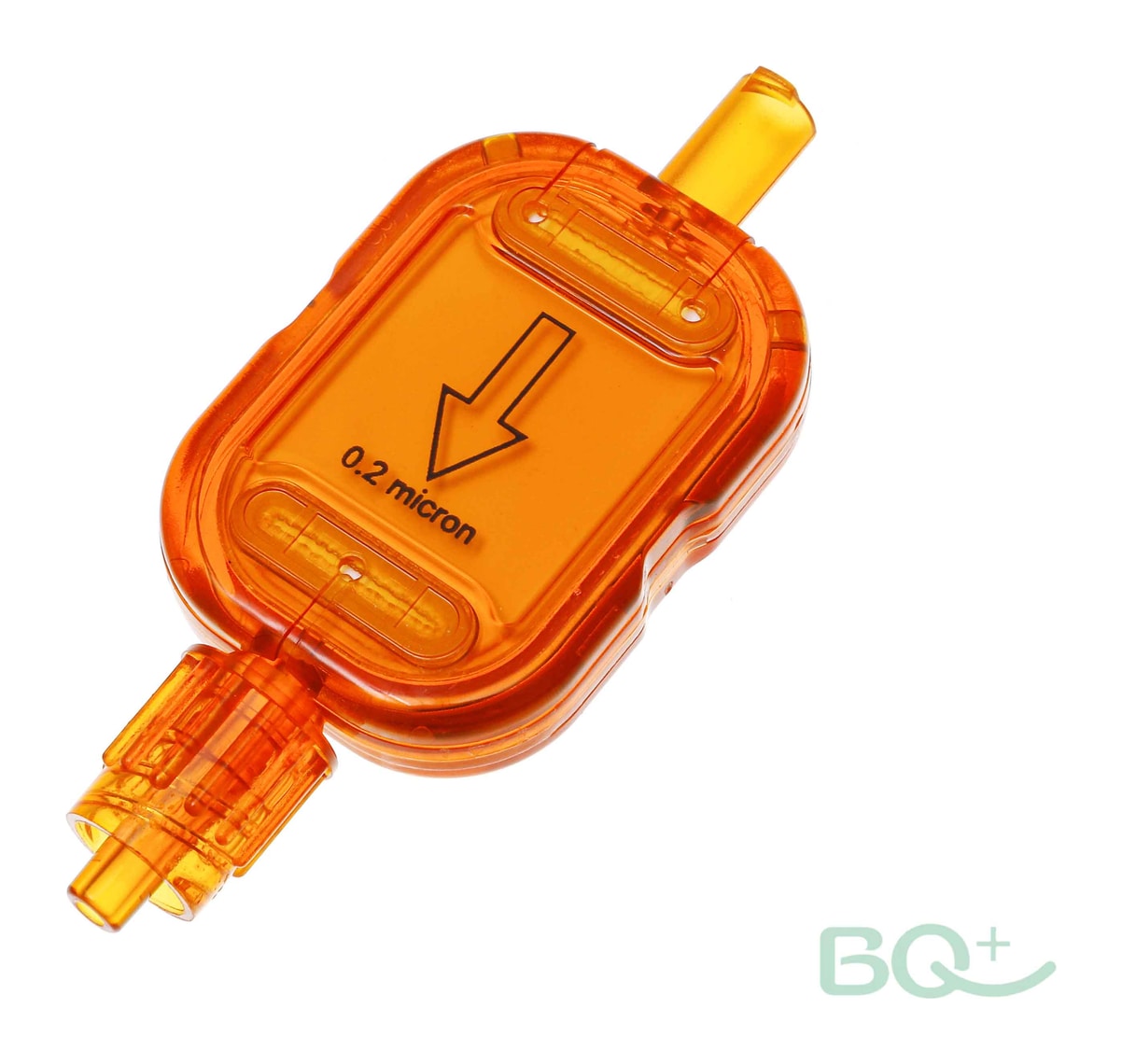

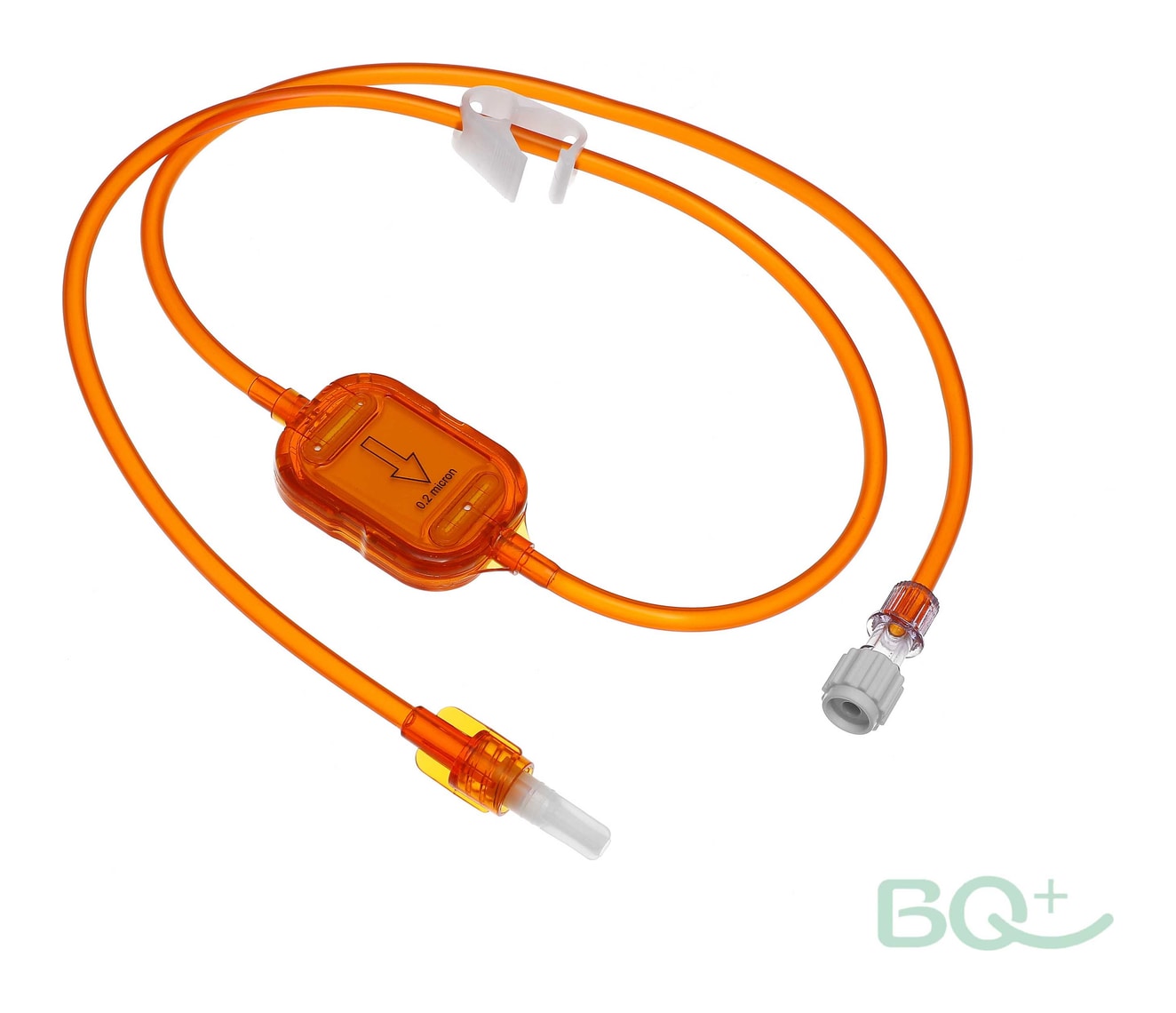

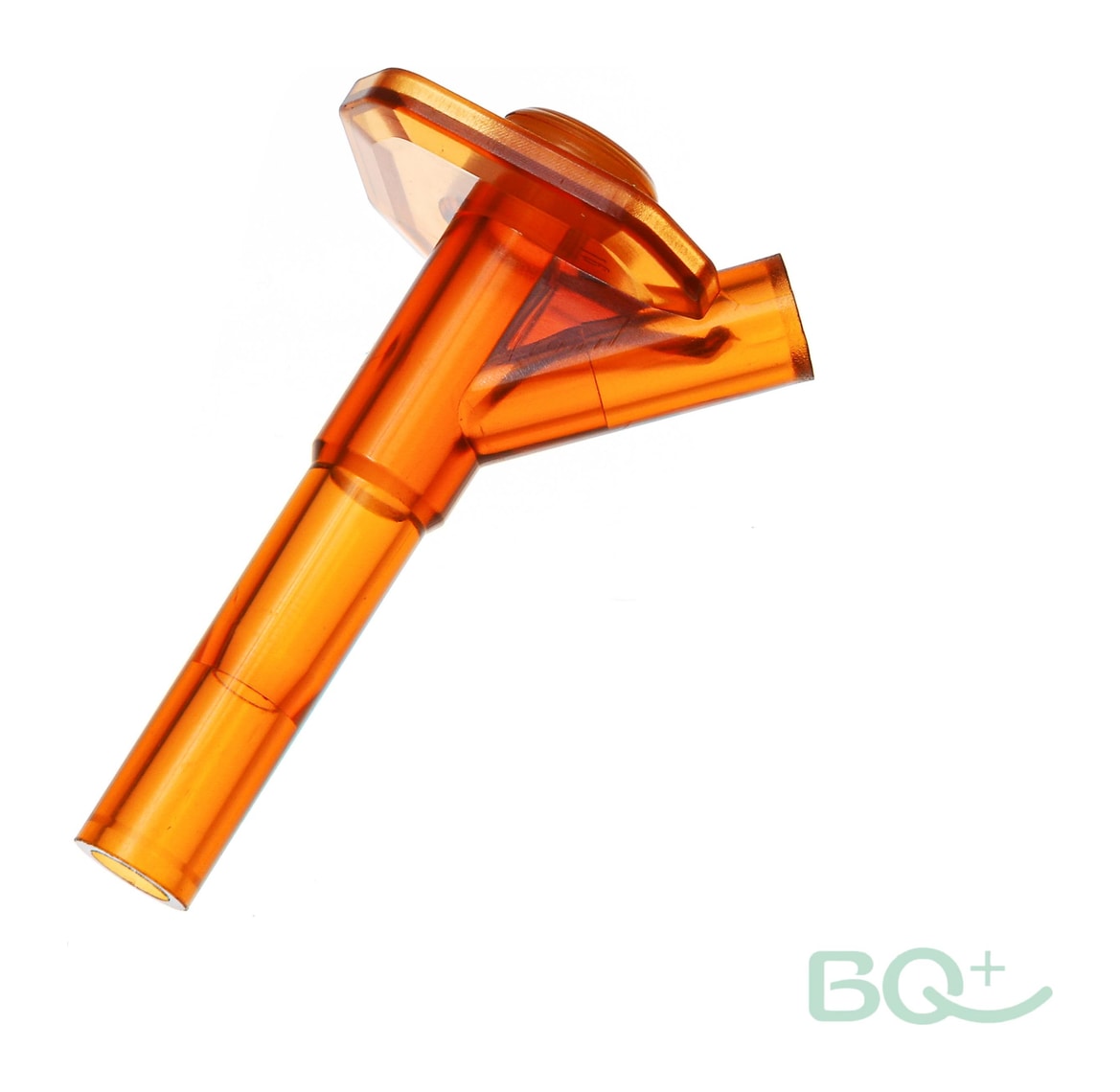

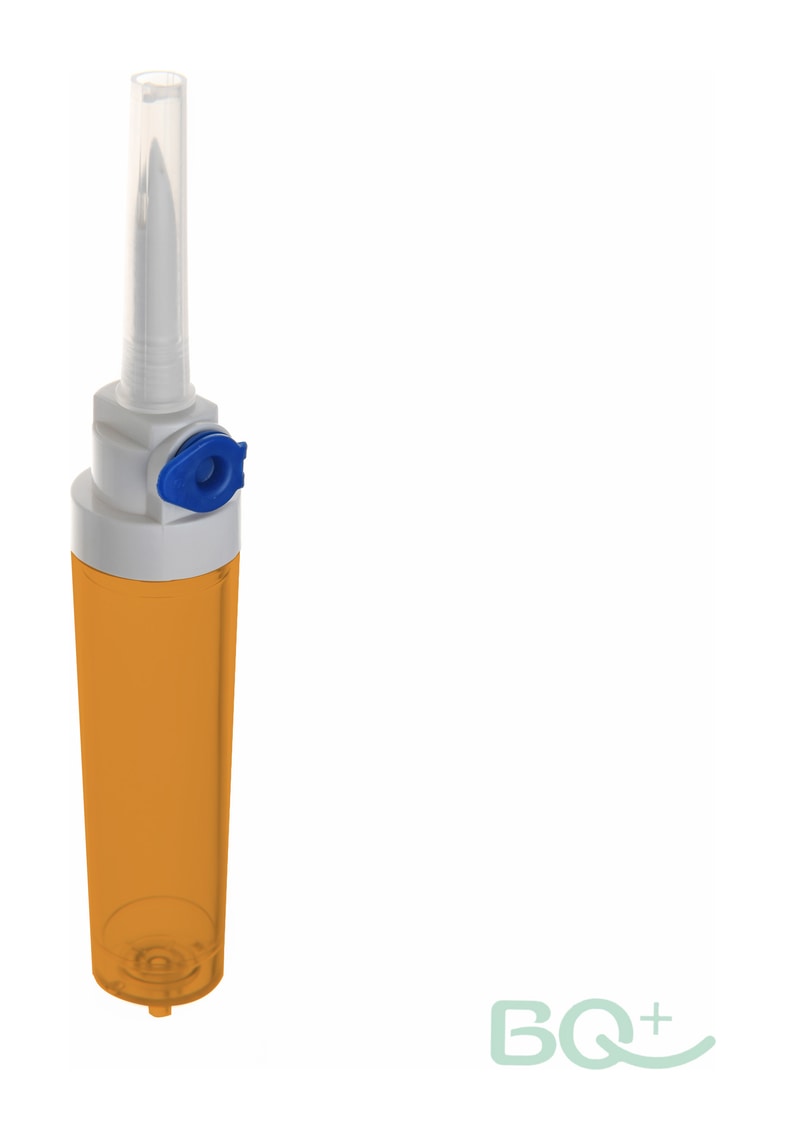

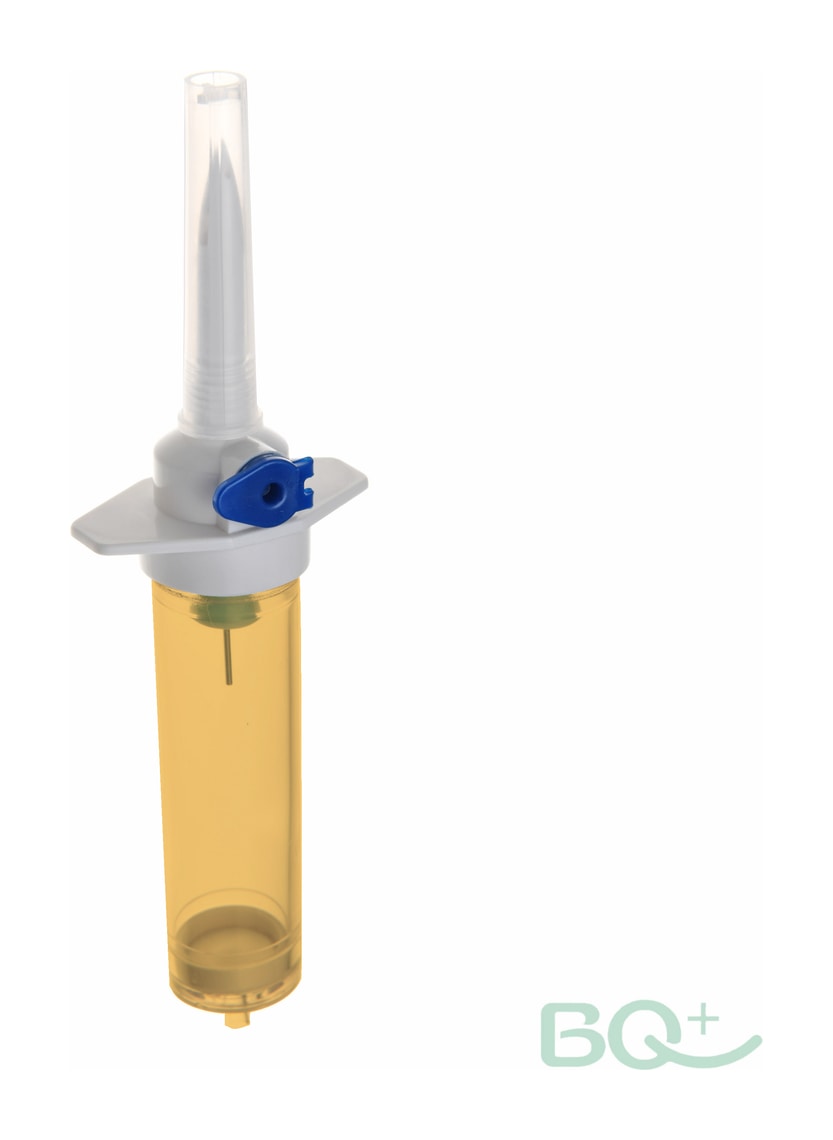

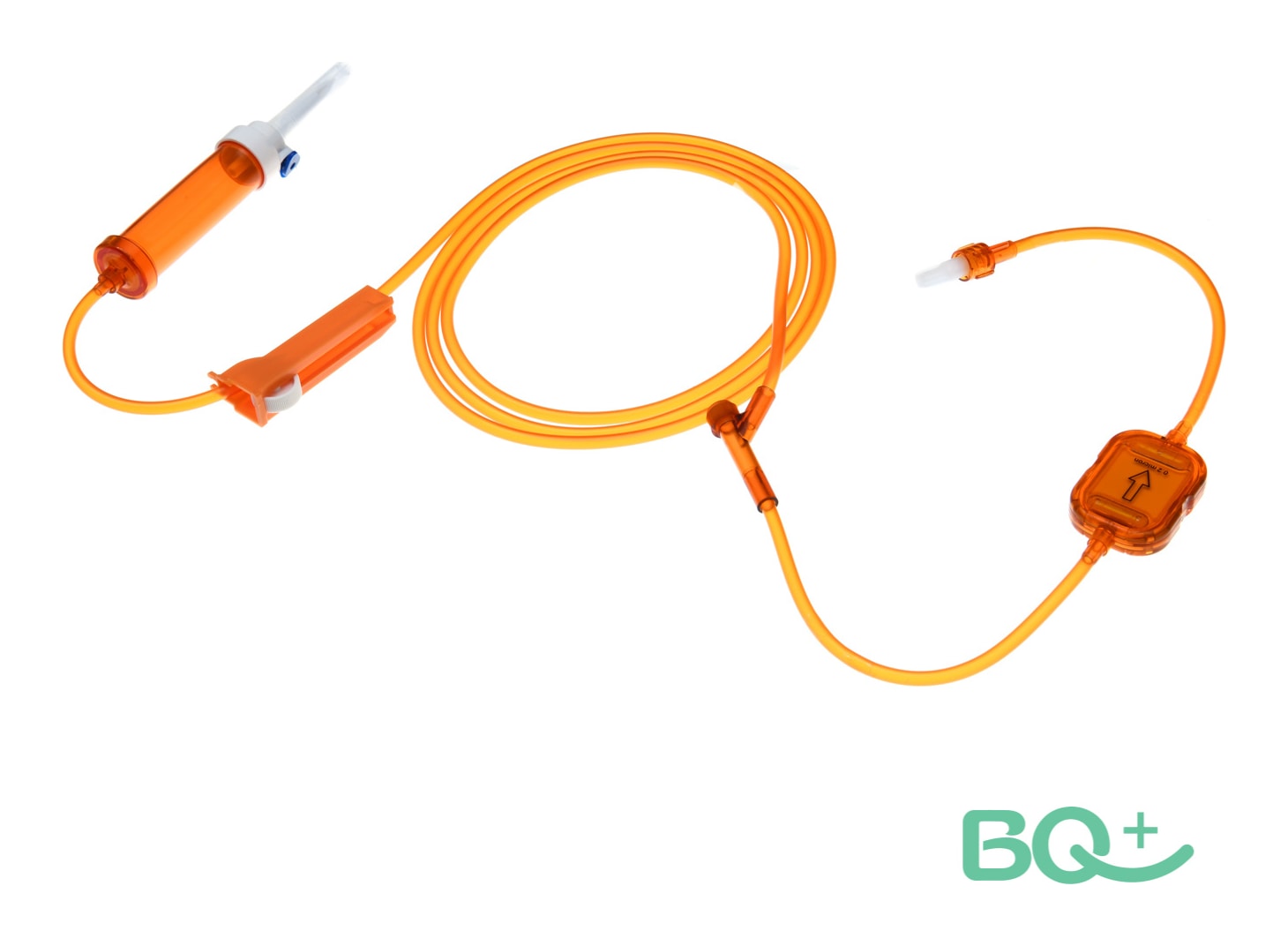

BQ oncology primary infusion set is developed for cytotoxic drug delivery, with needle free injection and double layer tubing protect drug from UV light. Double chambers, 10 micron filter, special safety roller clamp, Y-injection set, Male luer lock with prime stop. Oncology secondary Infusion sets are used in conjunction with our range of multi-way infusion sets and safety accessories, ensures a safe, closed system. 0.2 micron filter is an option to remove aggregates or particulate material generated during preparation.

Features

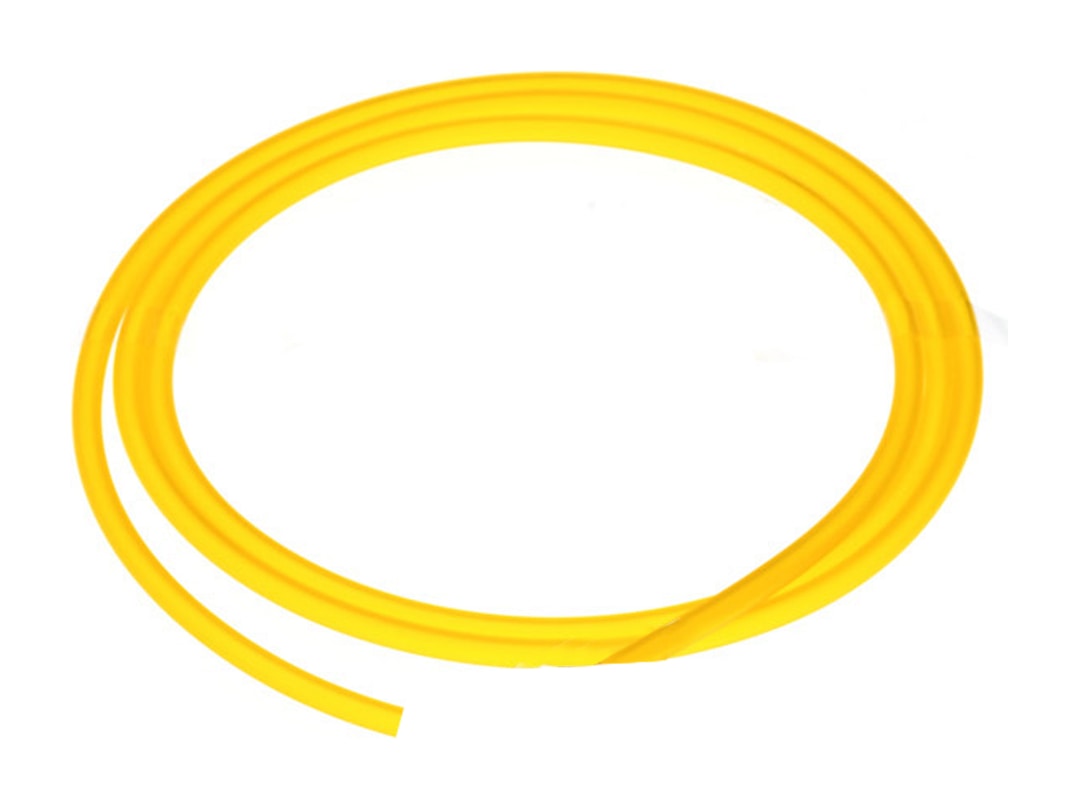

-Light protect DEHP FREE PVC &TPU tubing

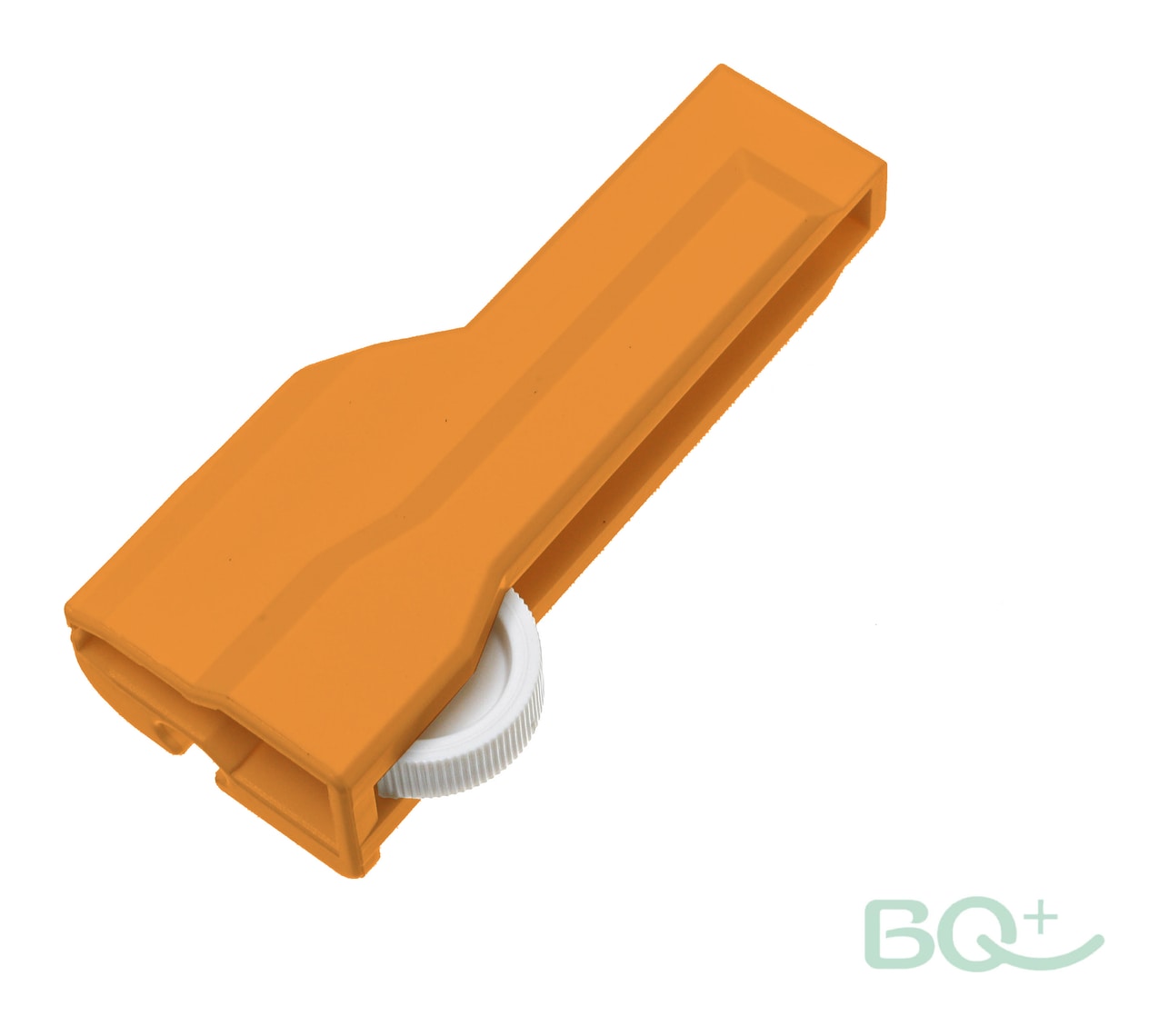

-Tubing size 3.0*4.Omm,length 245cm，vented spike and Robert clamp

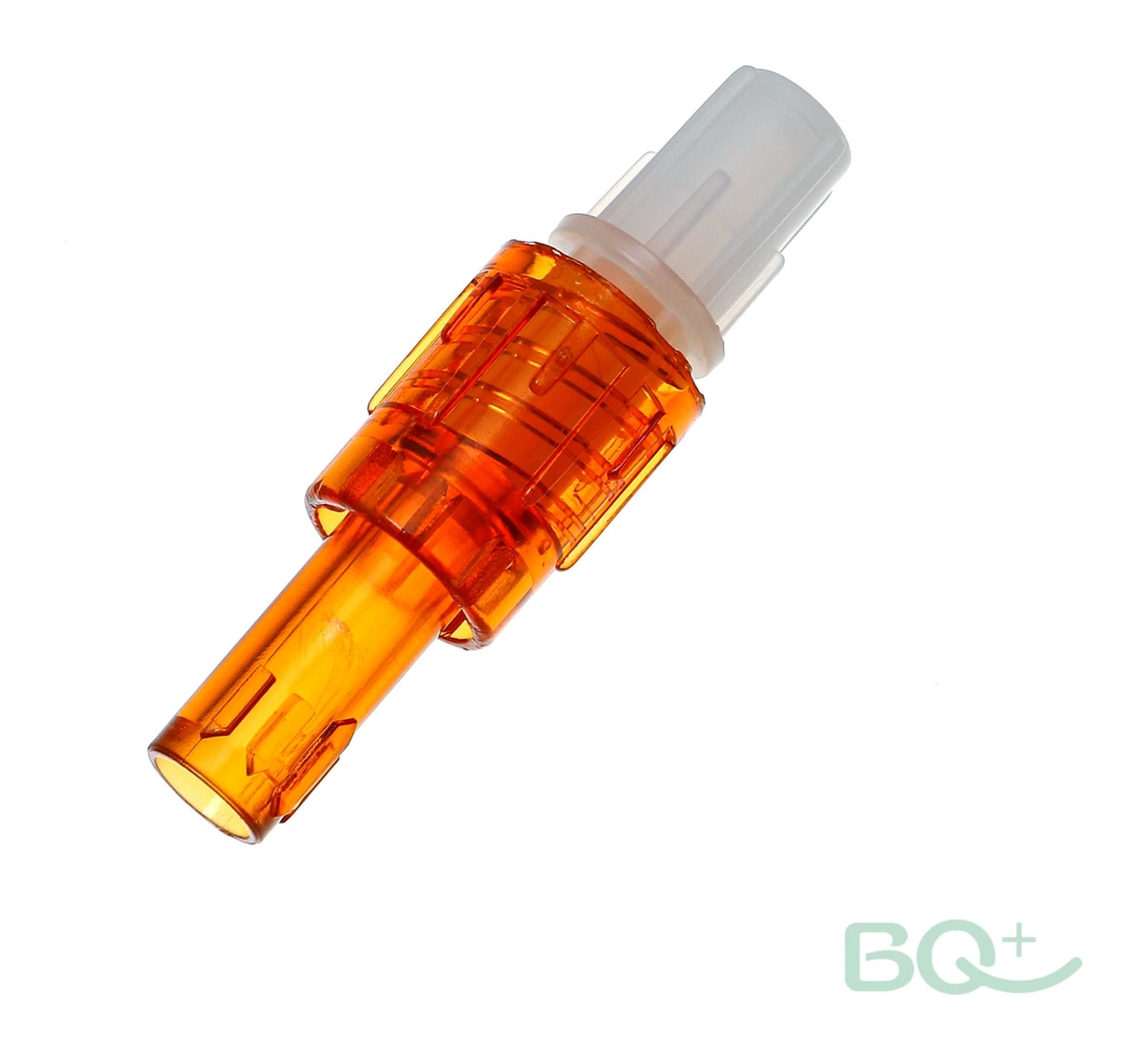

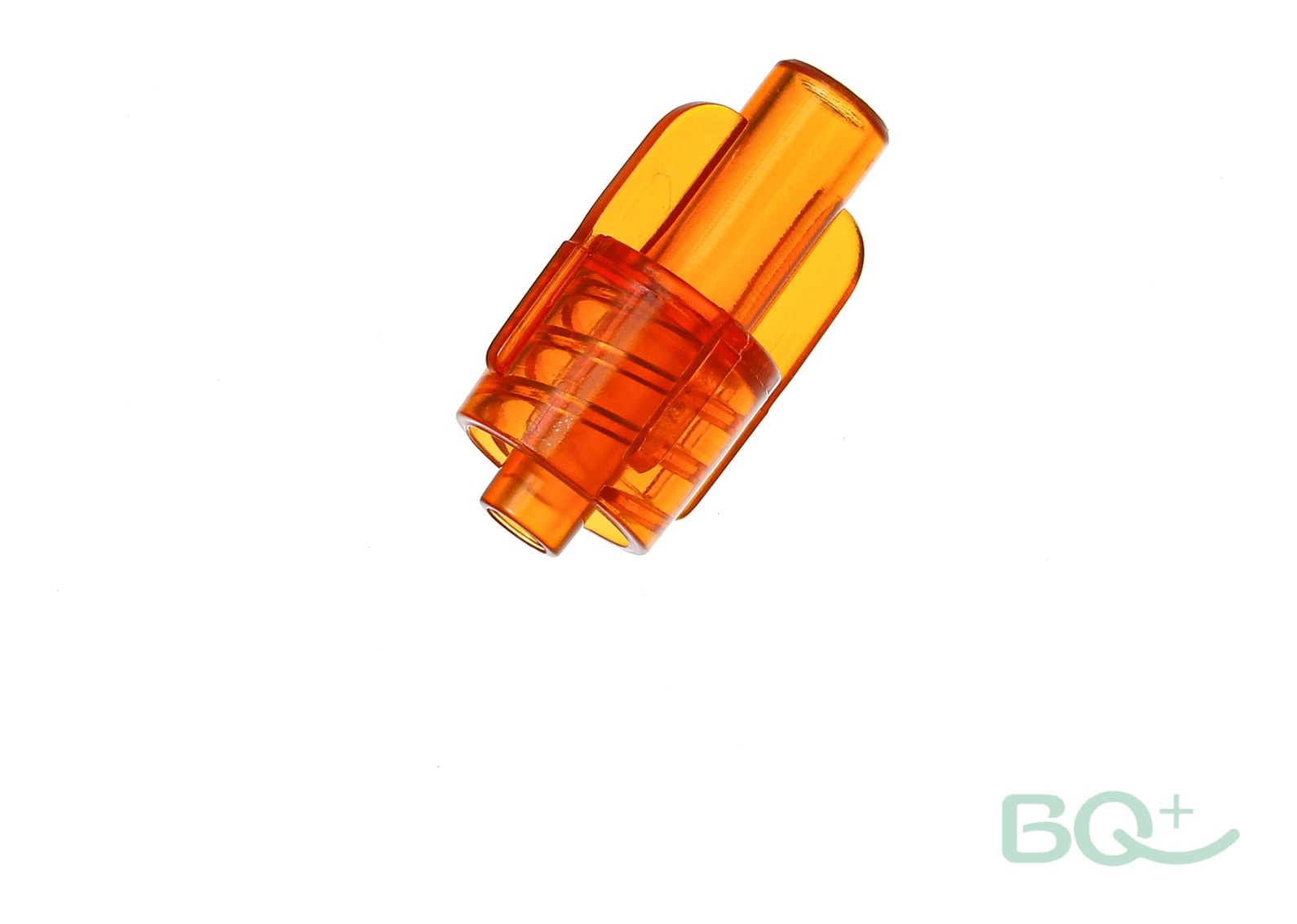

-With rotating male luer and priming cap at the distal end

-Multi-ports available

-Precision filter available

A Shanghai-Based, Export-oriented Medical Device Manufacturer

With 3 facilities, 400+ employees, ISO Certified, Lean Production, High-Quality

BQ+ Medical is a manufacturer dedicated in Infusion therapy products.

For you, BQ+ customizes sets of Infusion, Transfusion, Oncology & Enteral feeding with in-house Components molding, Assembling, and EO Sterilization.

BQ+ Medical not only produces components for manufacturers worldwide but also provides private-label manufacturing for leading brand distributors in different countries.

Looking for reliable partners among Chinese IV factories?

If you are among the increasing of business looking for reliable IV manufacturer as long term partner in China, we’ve got you covered. We supply components, customize finished sets, provide private labelling since 2005 for costomers from 60+ countries.

Factory Tour

3 factories with 25000sqm production area, 5000sqm Class 100K Clean Room, 40 injection machines, 6 extrusion machines, 400+ employees, total 204 cubic meter EO sterilization capacity.

Quality & Regulation

BQ+ facilities are ISO13485 Certified, FDA registered, CFDA Class II production licensed manufacturer. BQ+ Medical provide ETO sterilization service, which is also FDA registered, ISO11135 certified.

Process to start

BQ+ Medical streamlines the process, to ensure that the business discussion, supplier audit, manufacturing, and delivery of the goods is as efficient as possible. All this with competitive price, quality and lead time.

Our

Clients

Send us a message.

We would love to hear from you

F.A.Q.

Frequently Asked Questions

For which type of oncology set do you have?

We have 1 way, 2-way and 4-way, we can share with you some photos.

Is you oncology set made of PVC free?

We have different types, both PVC and PVC-FREE(TPU)

May I know the rough selling price?

Usually, the 2-way is the widely used type, the selling price around $2/unit FOB Shanghai price, DEHP FREE PVC type, MOQ 30K

What is your leadtime?

4 weeks for component, and 5 weeks for complete sets with artworks and payment ready in advance.

Could you send some samples for checking?

Yes, usually we send 5-10 units samples for free.

Do you sell only the oncology IV set?

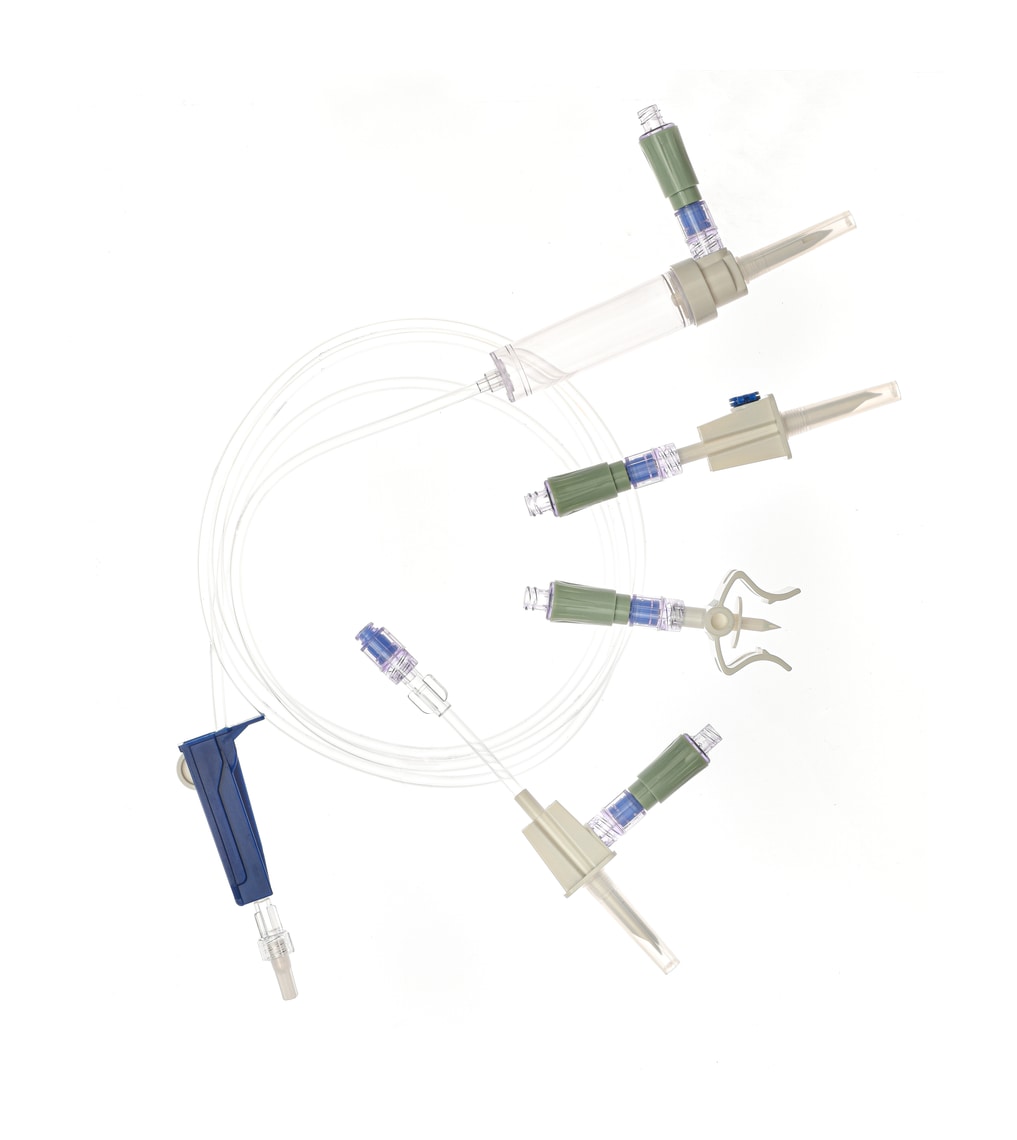

Not really, we have oncology priming set, secondary set, preparation set, vial adaptor, needle free valve and closed male luer lock, the whole set of the CSTD products.

Oncology Drug Preparation Demo.

Step 1: Preparation

– Preparation of the treatment under the laminar air flow cabinet

Step 2: Prime line

– Close the venting cap on the spike

– Spike the IV container and prime the line completely

Step 3: Connect Syringe

– Close the Robert clamp

– Disinfect the needle-free valve with 75% alcohol cotton

– Connect the prepared syringe to the needle-free valve

Step 4: Admixture

– Inject the drug into the container

– Mix the drug well

Step 5: Drug preparation

– Drug preparation done

Step 6: Transpotation

– Ready for the transport to the ward

Oncology Drug Application Demo.

Step 1: Spike container

– Close the venting cap on the spike

– Insert spike into the container

– Close roller clamp

-Squeeze the drip chamber to fill the drip chamber by 1/2 volume, open the roller clamp & venting cap, then prime the set completely

– Close robert clamp

Step 2: Prime line

– Close the Robert clamp on the secondary set

– Remove the needle-free valve cap on the primary set and prime stop cap on the secondary set

– Connect the secondary set to needle-free valve

Step 3: Start drug infusion

– Open the Robert clamp on the secondary set to start the drug infusion

Step 4: Flush the primary set

– Drain the drug container, then close the Robert clamp on the secondary set

– Open the Robert clamp on the primary set to flush the primary set

Step 5: Connect second line

– Close the Robert clamp on the primary set

– Open the Robert clamp on the next secondary set

– You can connect up to 4 lines

– Flush the primary set every time you change a secondary set

Step 6: Disposal

– After the last drug infusion is finished, flush the primary set again. The set is ready for disposal as a closed system

Product Catalog

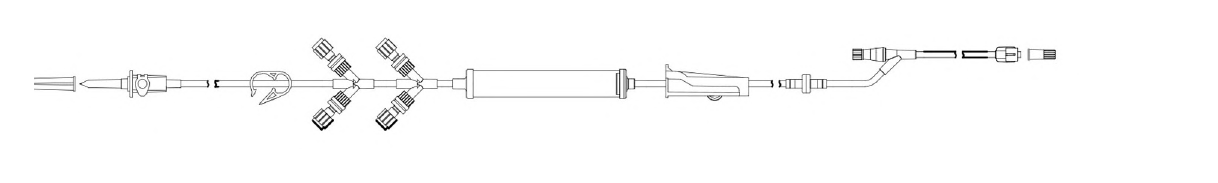

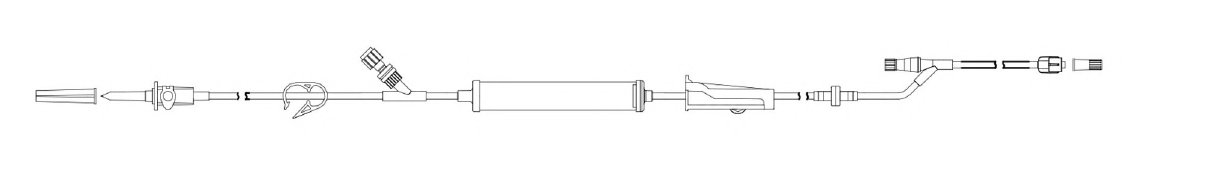

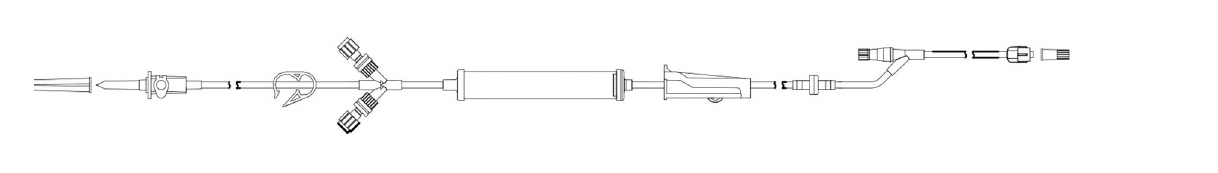

Specification (Product portfolio Primary infusion line)

Model	Detailed Configration	Tubing material	Pcs/Ctn
PLD001	Vented spike+tubing size 3.0*4.O mm+Robert clamp+W connector+back check valve/needle free connector+long drip chamber+ roller clamp+ rotating male luer lock and prime cap+peel pouch pack+EO sterilized.	DEHP FREE PVC	100
PLD002	Vented spike,tubing size 3.0*4.O mm,Robert clamp,W connector, back check valve/needle free connector, long drip chamber, roller clamp, rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	DEHP FREE PVC	100
PLD003	Vented spike,tubing size 3.0*4.O mm,Robert clamp,W connector, back check valve/needle free connector, long drip chamber, roller clamp, rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	DEHP FREE PVC	100
PLD004	Vented spike,tubing size 3.0*4.0 mm,Robert clamp, W connector, back check valve/needle free connector, long drip chamber, roller clamp, rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	DEHP FREE PVC	100
PLD005	Vented spike,tubing size 3.0*4.0 mm,Robert clamp,W connector, back check valve/needle free connector, long drip chamber, roller clamp, rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	DEHP FREE PVC	100
PLD006	Vented spike,tubing size 3.0*4.O mm,Robert clamp, W connector, back check valve/needle free connector, long drip chamber, roller clamp, rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	DEHP FREE PVC	100
PLU001	Vented spike,tubing size 3.0*4.0 mm,Robert clamp, W connector, back check valve/needle free connector, long drip chamber, roller clamp, rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	PU	100
PLU002	Vented spike,tubing size 3.0*4.O mm,Robert clamp,W connector, back check valve/needle free connector, long drip chamber, roller clamp, rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	PU	100
PLU003	Vented spike,tubing size 3.0*4.0 mm,Robert clamp,W connector, back check valve/needle free connector, long drip chamber, roller clamp, rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	PU	100
PLU004	Vented spike,tubing size 3.0*4.O mm,Robert clamp,W connector, back check valve/needle free connector, long drip chamber, roller clamp, rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	PU	100
PLU005	Vented spike,tubing size 3.0*4.0 mm,Robert clamp,W connector, back check valve/needle free connector, long drip chamber, roller clamp, rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	PU	100
PLU006	Vented spike,tubing size 3.0*4.0 mm,Robert clamp,W connector, back check valve/needle free connector, long drip chamber, roller clamp, rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	PU	100

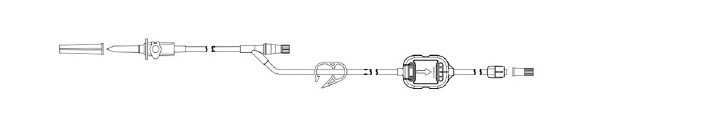

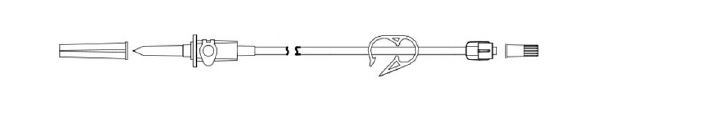

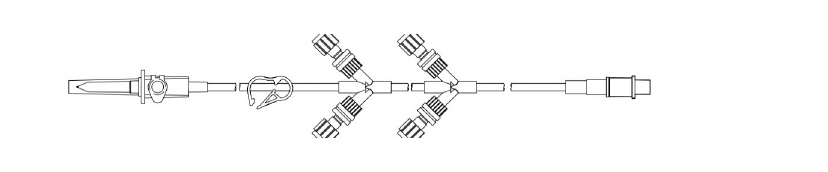

Specification (Product portfolio Secondary infusion set)

Model	Detailed Configration	Tubing material	Pcs/Ctn
SLD001	Vented spike,tubing size 3.0*4.0 mm,Robert clamp,rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	DEHP FREE PVC	200
SLD002	Vented spike,tubing size 3.0*4.0 mm,Robert clamp,rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	DEHP FREE PVC	200
SLD003	Vented spike,tubing size 3.0*4.0 mm,Robert clamp,rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	DEHP FREE PVC	200
SLD004	Vented spike,tubing size 3.0*4.0 mm,Robert clamp,rotating male luer lock and prime cap， peel pouch pack, EO sterilized.	DEHP FREE PVC	200
SLU001	Vented spike,tubing size 3.0*4.0 mm,Robert clamp,rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	PU	200
SLU002	Vented spike,tubing size 3.0*4.0 mm,Robert clamp,rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	PU	200
SLU003	Vented spike,tubing size 3.0*4.0 mm,Robert clamp,rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	PU	200
SLU004	Vented spike,tubing size 3.0*4.0 mm,Robert clamp,rotating male luer lock and prime cap, peel pouch pack, EO sterilized.	PU	200

Configuration

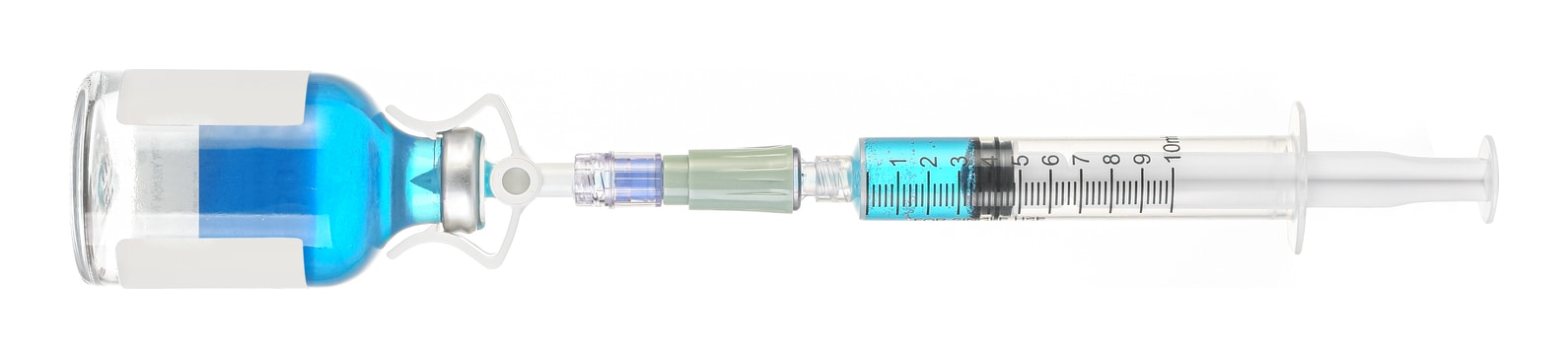

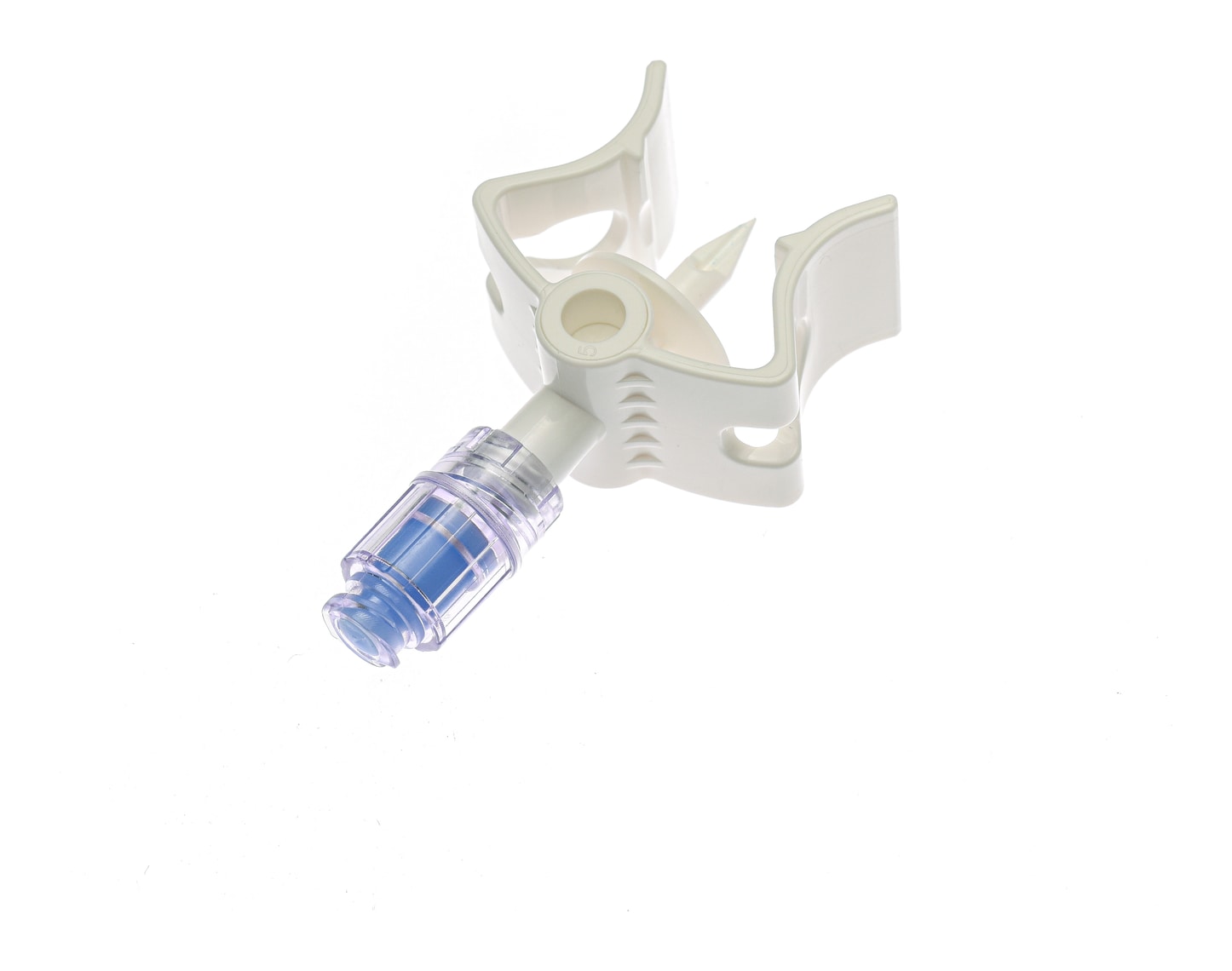

-Universal vial adaptor and needle free

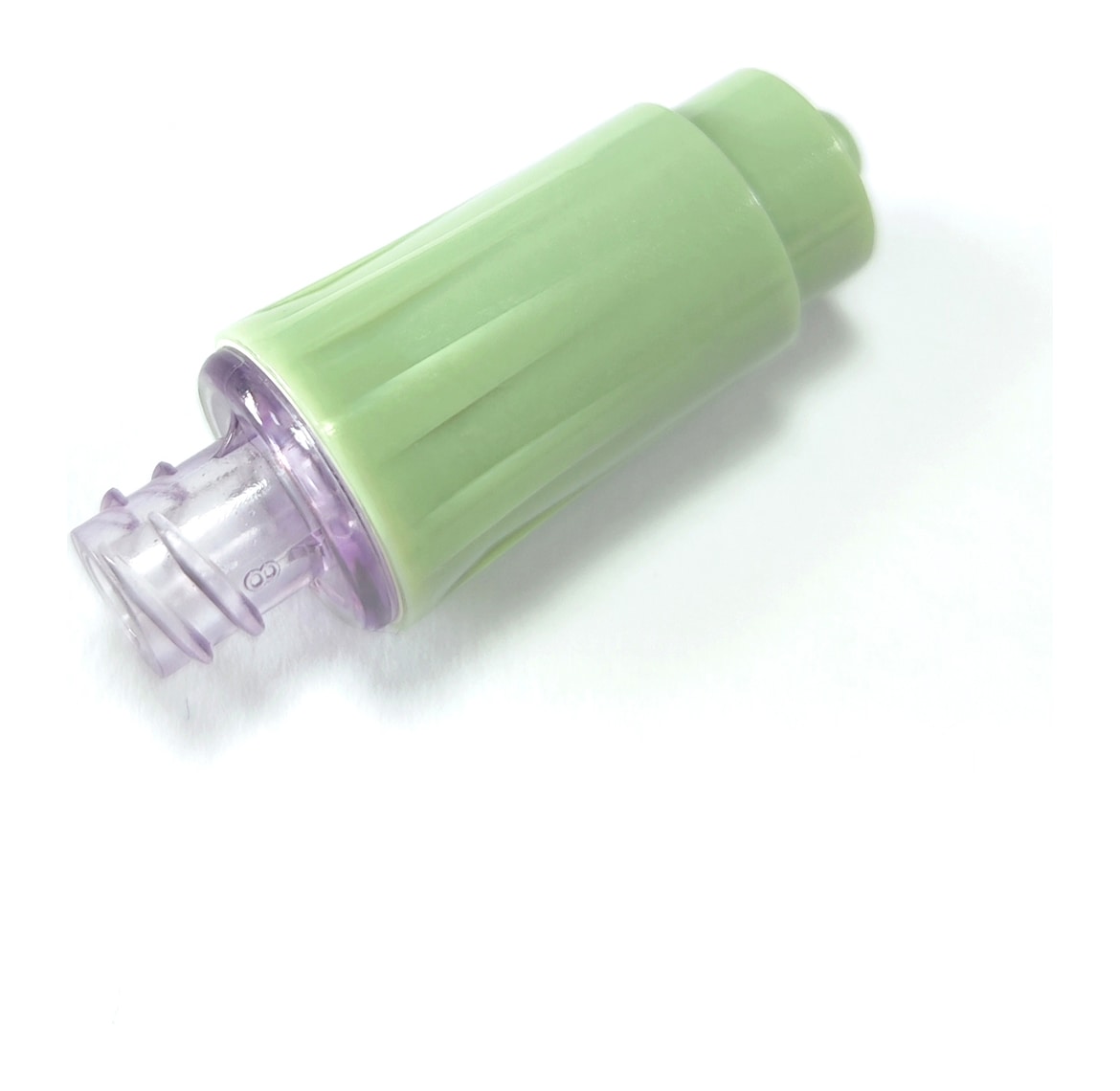

-Closed male luer lock

-Luer lock Syringe
